ID
1377035
$ 108.89
1-2 weeks delivery time
Type:
- 1 mm²
- 1.5 mm²
- 2.5 mm²
- 4 mm²

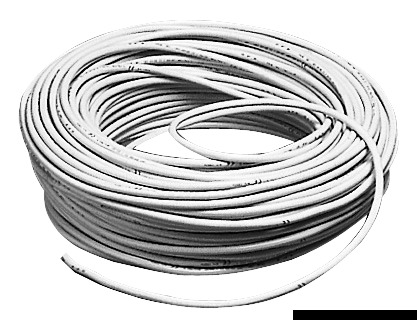

The Osculati Marine Bipolar Electrical Cable features black and red copper conductors protected by an extra-insulating PVC sheath. Manufactured in compliance with IEC 60332-3-22, CEI 20-22 II, CEI 20-371 and EU Directive 2011/95/CE, the cable is flame-retardant and oil-resistant, making it suitable for marine electrical installations, bilges, and engine-room applications. Available in 1 mm², 1.5 mm², 2.5 mm² and 4 mm² versions, supplied in 50 m rolls.
- Description
- Ask a Question
-
Osculati Marine Bipolar Electrical Cable IEC 60332-3-22 – Black/Red Conductors, 1–4 mm², 50 m Roll
The Osculati Marine Bipolar Electrical Cable is designed for professional marine electrical installations requiring reliable power distribution and enhanced environmental resistance. Manufactured from copper conductors with an extra-insulating PVC sheath, this cable complies with IEC 60332-3-22 standards and is suitable for use in bilges and engine compartments.
The cable incorporates black and red conductors within a durable medium-grey outer sheath, simplifying polarity identification while ensuring reliable operation in demanding marine conditions.
Key Features
- Bipolar marine electrical cable
- Black and red insulated conductors
- Extra-insulating PVC outer sheath
- Copper conductors
- Flame-retardant construction
- Oil-resistant insulation
- Suitable for bilges and engine-room installations
- Manufactured according to IEC 60332-3-22 requirements
- Supplied in 50 m rolls
Available Variations
Osculati Code Cross Section Version Conductor Colors Outer Sheath Roll Length External Ø 14.148.10 1 mm² Bipolar Black / Red Medium Grey 50 m 7 mm 14.148.15 1.5 mm² Bipolar Black / Red Medium Grey 50 m 8 mm 14.148.25 2.5 mm² Bipolar Black / Red Medium Grey 50 m 10.1 mm 14.148.40 4 mm² Bipolar Black / Red Medium Grey 50 m 11 mm
Technical Specifications
Brand Osculati Cable Type Bipolar Conductor Material Copper Insulation Material Extra-Insulating PVC Outer Sheath Color Medium Grey Conductor Colors Black / Red Standard IEC 60332-3-22 Compliance CEI 20-22 II, CEI 20-371, EU Directive 2011/95/CE Properties Flame Retardant, Oil Resistant Roll Length 50 m
Sold individually in the selected conductor cross-section.
-
