ID
1340139
$ 958.36
1-2 weeks delivery time
-
+
Cristec DC24-48/15PL provides reliable and silent conversion from 24V to 48V, featuring a 5-step charging profile, fanless cooling, and advanced monitoring through CAN-Bus and Bluetooth interfaces.
- Description
- Ask a Question
-

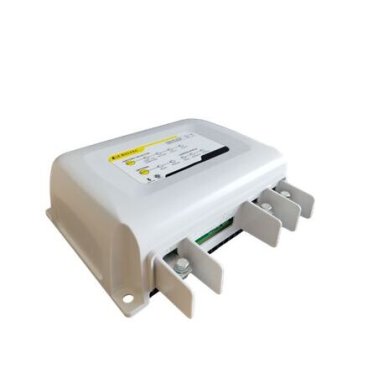

Cristec DC24-48/15PL - Dcpower+ 24V To 48V 15A Converter Charger
The Cristec DCPOWER+ DC24-48/15PL converter charger is engineered for efficient and silent charging of 48V battery systems from a 24V power source. Designed for demanding onboard and professional environments, it combines compact dimensions with high reliability.
Thanks to its fanless natural convection cooling, the unit operates completely silently. The intelligent 5-step charging profile, including Boost, Absorption, Floating, Refresh, and Reboost, ensures optimal charging performance and extended battery life. It supports multiple battery technologies such as open lead-acid, gel, AGM, and Lithium LiFePO4 batteries with BMS.
Battery technology can be easily selected using the front keypad. Integrated CAN-Bus and Bluetooth Low Energy interfaces allow remote monitoring and configuration. The converter charger operates efficiently up to +60 °C without derating and complies with ISO 8846 and SAE J1171 standards.
Technical Specifications
Rated Current 15 A Input Tension 20 – 64 V Maximum Intensity 32 A Decibel Level 0 dB Ingress Protection IP22 Height 220 mm Length 238 mm Width 96 mm Depth 81 mm Number Of Outputs 1 Weight 2 kg
Brand: Cristec
Article Code: DC24-48/15PL -
