Cristec DC36-36/20PL is a silent converter charger for 36V systems, delivering optimized multi-stage charging, broad battery compatibility, and professional monitoring via CAN-Bus and Bluetooth.
- Description
- Ask a Question
-

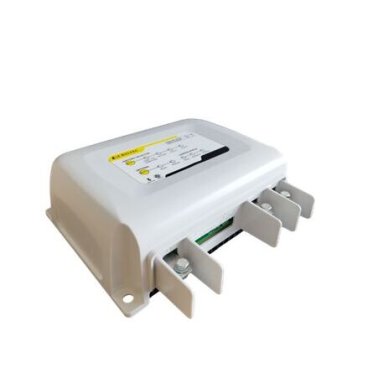

Cristec DC36-36/20PL - Dcpower+ 36V To 36V 20A Converter Charger
The Cristec DCPOWER+ DC36-36/20PL converter charger is engineered for efficient and silent charging of 36V battery systems. Designed for professional onboard use, it delivers reliable performance in demanding environments.
The fanless natural convection cooling ensures completely silent operation. Its advanced 5-step charging profile optimizes battery charging and supports multiple battery technologies including open lead-acid, gel, AGM, and Lithium LiFePO4 with BMS.
Battery technology selection is simple via the front keypad. CAN-Bus and Bluetooth Low Energy interfaces allow real-time monitoring and configuration. The unit operates up to +60 °C without derating and complies with ISO 8846 and SAE J1171 standards.
Technical Specifications
Rated Current 20 A Input Tension 30 – 64 V Maximum Intensity 25 A Decibel Level 0 dB Ingress Protection IP22 Height 220 mm Length 238 mm Width 96 mm Depth 81 mm Number Of Outputs 1 Temperature Accessories Temperature Probe STP-UNI-2.8 (2.8 m) Or STP-UNI-5.0 (5 m), OTD Over Temperature Device, STP-ALT-2.4 Alternator Probe, Parallel Mounting Weight 2 kg
Brand: Cristec
Article Code: DC36-36/20PL -
