ID
1340138
$ 958.36
1-2 weeks delivery time
-
+
Cristec DC24-36/20PL is designed for silent charging of 36V batteries from a 24V supply, offering fanless operation, optimized charging performance, wide battery compatibility, and remote monitoring options.
- Description
- Ask a Question
-

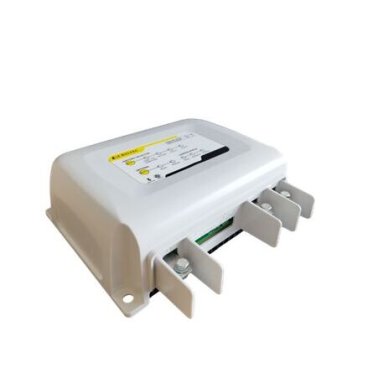

Cristec DC24-36/20PL - Dcpower+ 24V To 36V 20A Converter Charger
The Cristec DCPOWER+ DC24-36/20PL converter charger delivers efficient and silent charging for 36V battery systems powered from a 24V source. Designed for demanding professional and onboard applications, it ensures stable performance and long-term reliability.
Its fanless natural convection cooling guarantees silent operation, while the intelligent 5-step charging profile optimizes battery health and charging efficiency. The unit supports multiple battery technologies including open lead-acid, gel, AGM, and Lithium LiFePO4 with BMS.
The front keypad allows easy battery technology selection. CAN-Bus and Bluetooth Low Energy interfaces provide remote control and monitoring. The converter charger operates up to +60 °C without derating and complies with ISO 8846 and SAE J1171 standards.
Technical Specifications
Rated Current 20 A Input Tension 20 – 64 V Maximum Intensity 25 A Decibel Level 0 dB Ingress Protection IP22 Height 220 mm Length 238 mm Width 96 mm Depth 81 mm Number Of Outputs 1 Weight 2 kg
Brand: Cristec
Article Code: DC24-36/20PL -
