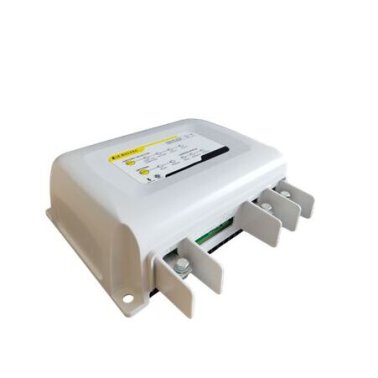

Cristec DC48-24/30PL - Dcpower+ 48V To 24V 30A Converter Charger
The Cristec DCPOWER+ DC48-24/30PL converter charger ensures efficient and silent charging of 24V battery systems from a 48V source. Designed for demanding onboard and professional applications, it delivers reliable and stable power conversion.
Its fanless natural convection cooling guarantees completely silent operation. The intelligent 5-step charging profile optimizes charging efficiency and supports open lead-acid, gel, AGM, and Lithium LiFePO4 batteries with BMS.
The front keypad allows easy selection of battery technology, while CAN-Bus and Bluetooth Low Energy interfaces provide remote supervision and configuration. The unit operates up to +60 °C without derating and complies with ISO 8846 and SAE J1171 standards.
Technical Specifications
Rated Current 30 A Input Tension 40 – 64 V Maximum Intensity 20 A Decibel Level 0 dB Ingress Protection IP22 Height 220 mm Length 238 mm Width 96 mm Depth 81 mm Number Of Outputs 1 Weight 2 kg
Brand: Cristec
Article Code: DC48-24/30PL -
