Cristec DC48-12/40PL is designed for silent and efficient charging of 12V batteries from a 48V source, offering advanced 5-step charging, fanless operation, and professional monitoring features.
- Description
- Ask a Question
-

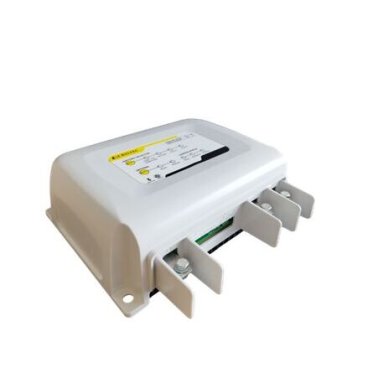

Cristec DC48-12/40PL - Dcpower+ 48V To 12V 40A Converter Charger
The Cristec DCPOWER+ DC48-12/40PL converter charger is designed to efficiently and silently charge 12V battery systems from a 48V power source. Engineered for professional and onboard environments, it combines compact dimensions with robust reliability.
Thanks to natural convection cooling, this fanless unit operates completely silently. The advanced 5-step charging profile, including Boost, Absorption, Floating, Refresh, and Reboost, ensures optimal battery performance and extended service life. It supports multiple battery technologies such as open lead-acid, gel, AGM, and Lithium LiFePO4 batteries with BMS.
Battery technology selection is quick and intuitive via the front keypad. Integrated CAN-Bus and Bluetooth Low Energy interfaces enable remote monitoring and control. The converter charger maintains full performance up to +60 °C without derating and complies with ISO 8846 and SAE J1171 standards.
Technical Specifications
Rated Current 40 A Input Tension 40 – 64 V Maximum Intensity 15 A Decibel Level 0 dB Ingress Protection IP22 Height 220 mm Length 238 mm Width 96 mm Depth 81 mm Number Of Outputs 1 Weight 2 kg
Brand: Cristec
Article Code: DC48-12/40PL -
