Item:
- Black Dial & Black Bezel
- Black Dial & Glossy Bezel
- White Dial & Glossy Bezel

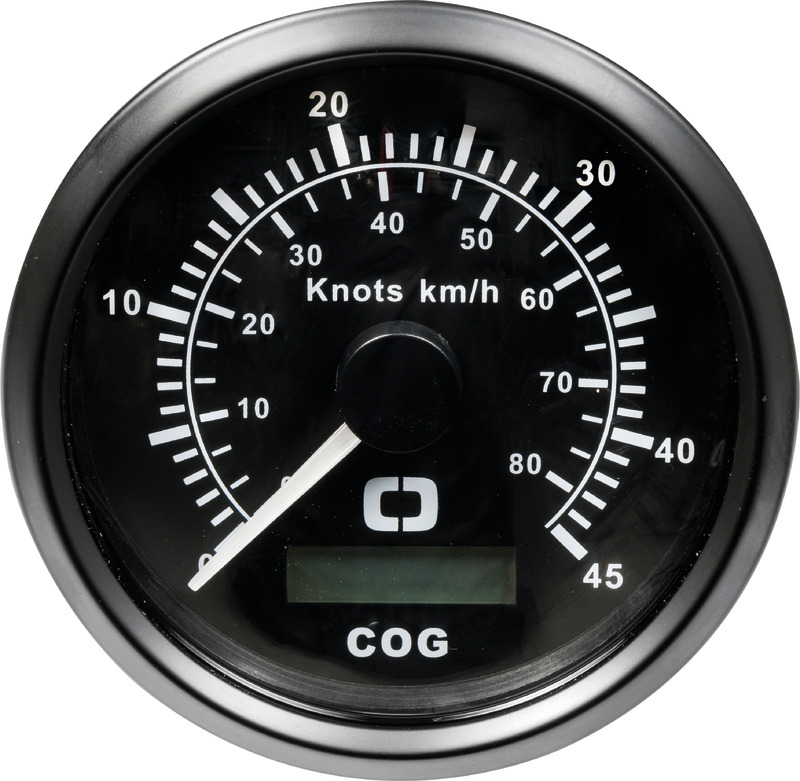

The Osculati GPS Analog Speedometer & Compass is a marine dashboard instrument that measures vessel speed using a built-in 32-channel GPS antenna, eliminating the need for a Pitot tube or other external transducer. This Type 1 version combines analog speed indication from 0–45 knots with a digital compass course display (degree-by-degree). The instrument operates on 12V electrical systems and features red and yellow dial backlighting for visibility in low-light conditions.
- Description
- Ask a Question
-
Osculati GPS Analog Speedometer & Compass – 0–45 Knots Marine GPS Speed Gauge 12V, Ø96 mm
The Osculati GPS Analog Speedometer & Compass is a marine dashboard instrument designed to measure vessel speed using satellite positioning. The unit features a built-in 32-channel GPS antenna, eliminating the need for water pressure Pitot tubes or other external speed transducers.
This Type 1 configuration combines an analog speedometer with a digital compass display. Boat speed is indicated on the dial within a 0–45 knot range, while the vessel course is displayed digitally with degree-by-degree compass indication.
The instrument operates on a 12V electrical system and includes red and yellow dial backlighting for improved visibility during night navigation or low-light conditions. Several dial and bezel combinations are available to match different marine dashboard designs.
Key Features
- GPS-based marine speedometer with compass
- Integrated 32-channel GPS antenna
- No external speed transducer required
- Analog speed indication
- Digital compass course indication (degree-by-degree)
- Speed range: 0–45 knots
- Red and yellow dial backlighting for night visibility
- Available in multiple dial and bezel finishes
- Large-format Ø96 mm marine dashboard instrument
Available Variants
Item Dial / Bezel Version Voltage Speed Range Instrument Ø Hole Ø Depth (P) 27.780.02 Black dial, black bezel Type 1 12 V 0–45 knots 96 mm 85 mm 55 mm 27.780.03 Black dial, glossy bezel Type 1 12 V 0–45 knots 96 mm 85 mm 55 mm 27.780.01 White dial, glossy bezel Type 1 12 V 0–45 knots 96 mm 85 mm 55 mm
Installation Dimensions
- Instrument diameter: 96 mm
- Panel hole diameter: 85 mm
- Installation depth (P): 55 mm
-
