ID
1391225
$ 32.17
1-2 weeks delivery time
Diameter, mm:
- 8
- 10
- 12
Viadana Wind Speed Ball Bearing Single Blocks are compact, high-load sailing blocks featuring reinforced black nylon construction, stainless steel components and ball-bearing sheaves for smooth rope handling. Available for ropes up to 8, 10 and 12 mm with 34-56 mm sheaves, the range provides breaking loads from 800 to 1450 kg and working loads from 300 to 580 kg. Corresponding Viadana references are 89.53, 90.53 and 91.51.
- Description
- Ask a Question
-

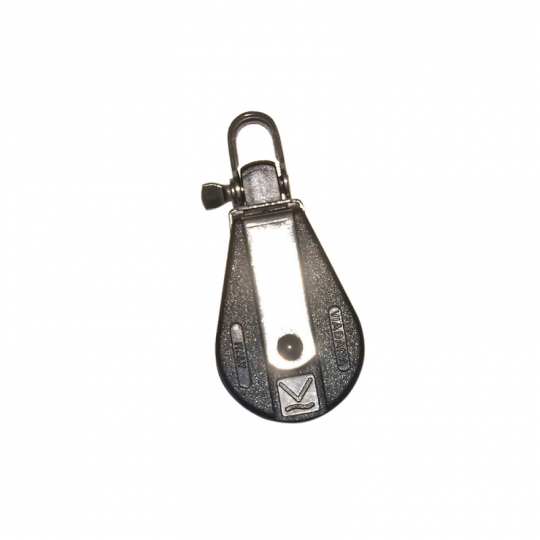

Viadana Wind Speed Ball Bearing Single Blocks with Universal Head for Rope up to 8-12 mm, 34-56 mm Sheaves - Osculati 55.070.08 / 55.070.10 / 55.070.12
Viadana Wind Speed Ball Bearing Single Blocks are designed for sailing and marine rigging systems where smooth rope movement, compact dimensions and high load capacity are required. The range combines a reinforced black nylon body with stainless steel components and ball-bearing sheaves, providing a durable construction suitable for repeated operation in demanding deck and rigging applications.
The universal head configuration allows the block to be incorporated into different rigging arrangements, while the ball-bearing system reduces friction as the rope passes over the sheave. Three sizes are available for ropes up to 8, 10 and 12 mm, with corresponding sheave diameters of 34, 45 and 56 mm.
Breaking loads increase from 800 kg on the smallest model to 1450 kg on the largest version, while working loads range from 300 to 580 kg. The corresponding Viadana references are 89.53, 90.53 and 91.51, with FNI product numbers 7878024, 7878025 and 7878026 respectively.
Product Features
- Brand: Viadana
- Series: Wind Speed
- Product type: Single ball bearing block
- Head type: Universal head
- Body: Reinforced black nylon
- Metal components: Stainless steel
- Bearing type: Ball bearings
- Available rope capacities: Up to 8, 10 or 12 mm
- Available sheave diameters: 34, 45 or 56 mm
- Breaking load range: 800-1450 kg
- Working load range: 300-580 kg
Available Variants
Max. Rope Diameter Sheave Diameter Breaking Load Working Load Viadana Article Osculati Code FNI Product Number 8 mm 34 mm 800 kg 300 kg 89.53 55.070.08 7878024 10 mm 45 mm 950 kg 370 kg 90.53 55.070.10 7878025 12 mm 56 mm 1450 kg 580 kg 91.51 55.070.12 7878026 -
