ID
1383916
$ 71.53
1-2 weeks delivery time
Diameter, mm:
- 8
- 10
- 12
- 14
- 16
- 20
Wichard High Resistance Bow Shackles are forged from premium marine-grade 316L stainless steel for professional sailing, offshore, lifting, and heavy-duty rigging applications. Their wide bow profile allows greater articulation and multiple attachment points, while the high-resistance forged construction delivers exceptional strength and corrosion protection in harsh marine environments. Available in diameters from Ø8 mm to Ø20 mm with breaking loads up to 22,400 kg.
- Description
- Ask a Question
-

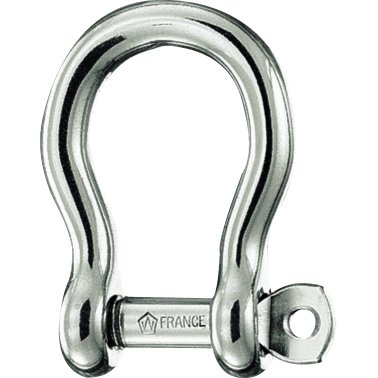

Wichard High Resistance Bow Shackles Stainless Steel 316L
Wichard High Resistance Bow Shackles are precision-forged from premium 316L stainless steel to provide outstanding mechanical strength and superior corrosion resistance in demanding marine environments. Designed for professional offshore sailing, heavy-duty rigging, lifting equipment, and mooring systems, these shackles combine maximum reliability with long service life.
Supplied through Plastimo, these original Wichard bow shackles feature a generous bow profile that accommodates multiple attachment points while allowing improved articulation compared to straight shackles. Their high-resistance construction makes them suitable for critical load-bearing applications where safety and durability are essential.
Features
- Original Wichard products
- Official Plastimo distributor references included
- Original Wichard OEM part numbers included
- Forged high-resistance construction
- Marine-grade stainless steel 316L
- Wide bow profile for multi-directional loading
- Excellent resistance to saltwater corrosion
- Designed for professional marine and offshore use
Available Variations
Plastimo SKU Wichard OEM Diameter Length Width Breaking Load SWL 403738 W 11244 Ø 8 mm 37 mm 16 mm 3,520 kg 704 kg 403745 W 11245 Ø 10 mm 47 mm 20 mm 6,000 kg 1,200 kg 403746 W 11246 Ø 12 mm 55 mm 24 mm 8,000 kg 1,600 kg 416955 W 11240 Ø 14 mm 63 mm 28 mm 11,200 kg 2,240 kg 403747 W 11247 Ø 16 mm 70 mm 32 mm 15,200 kg 3,040 kg 403748 W 11248 Ø 20 mm 80 mm 40 mm 22,400 kg 4,480 kg
Technical Specifications
Brand Wichard Distributor Plastimo Material Forged stainless steel 316L Type High Resistance Bow Shackle Diameter Range 8–20 mm Safe Working Load (SWL) 704–4,480 kg Breaking Load 3,520–22,400 kg Applications Offshore sailing, standing rigging, lifting equipment, mooring systems, deck hardware and professional marine installations
Applications
- Offshore sailing yachts
- Standing and running rigging
- Heavy-duty deck hardware
- Mooring systems
- Lifting and hoisting equipment
- Professional marine installations
- Industrial fastening applications
-
