ID
1304353
$ 81.98
1-2 weeks delivery time
-
+
The Wichard 11614 MXEvo 8 mm Allen head block combines a one-piece design with a Duplex stainless steel pin and leash, providing reliability under demanding conditions for mastfoot blocks and backstays, supporting a working load of 1300 kg.
- Description
- Ask a Question
-

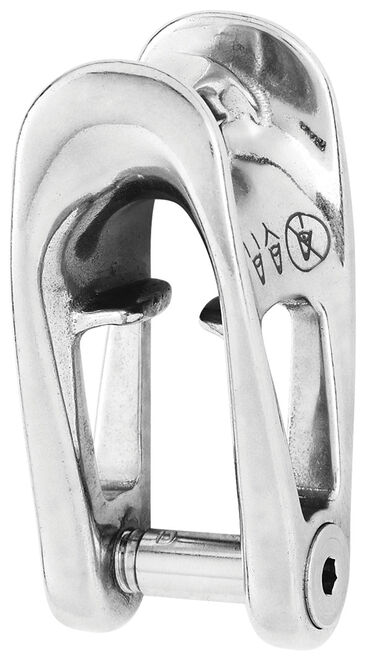

Wichard 11614 - One Piece Block MXEvo Allen Head Pin 8 mm
The MXEvo 8 mm block offers a one-piece design with a Duplex stainless steel pin. Its leash secures the pin during operation and it provides excellent performance in demanding conditions.
- Built for heavy load applications
- High working and breaking load limits
- Allen head pin design
- Becket available for tackles
- Rope kept aligned by fins
- Optimized weight and dimensions
- Simple rope installation
- Minimized rope wear due to track layout
- Monobloc construction enhances reliability
- Maximum rope size: 10 mm
Applications include mastfoot blocks and running backstays.
- Materials: 316L stainless steel grade
- Rope size: 10 mm
- Length: 62 mm
- Width: 36 mm
- Working load: 1300 kg
- Breaking load: 3500 kg
- Weight: 100 g

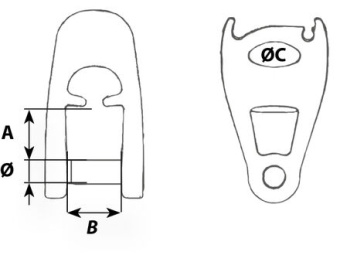

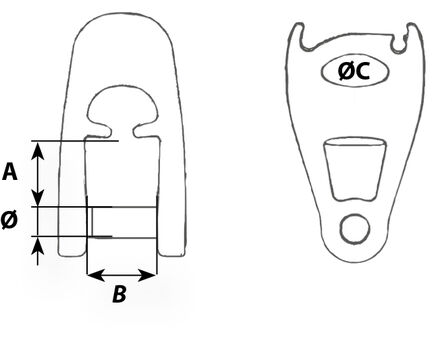

- A: 18 mm
- B: 18 mm
- C: 9 mm
- D diameter: 8 mm
Item number: WR11614
-
