Closed body M6 stainless steel turnbuckle with locknuts and clip for secure attachment, crafted from 316 stainless steel with metric threads. Designed with a safety factor of 4 and safe working load of 275 kg, it measures 220 mm overall length, 6 mm material diameter, 7.5 mm inside width, 10 mm inside length, and weighs about 81 gr.
- Description
- Ask a Question
-

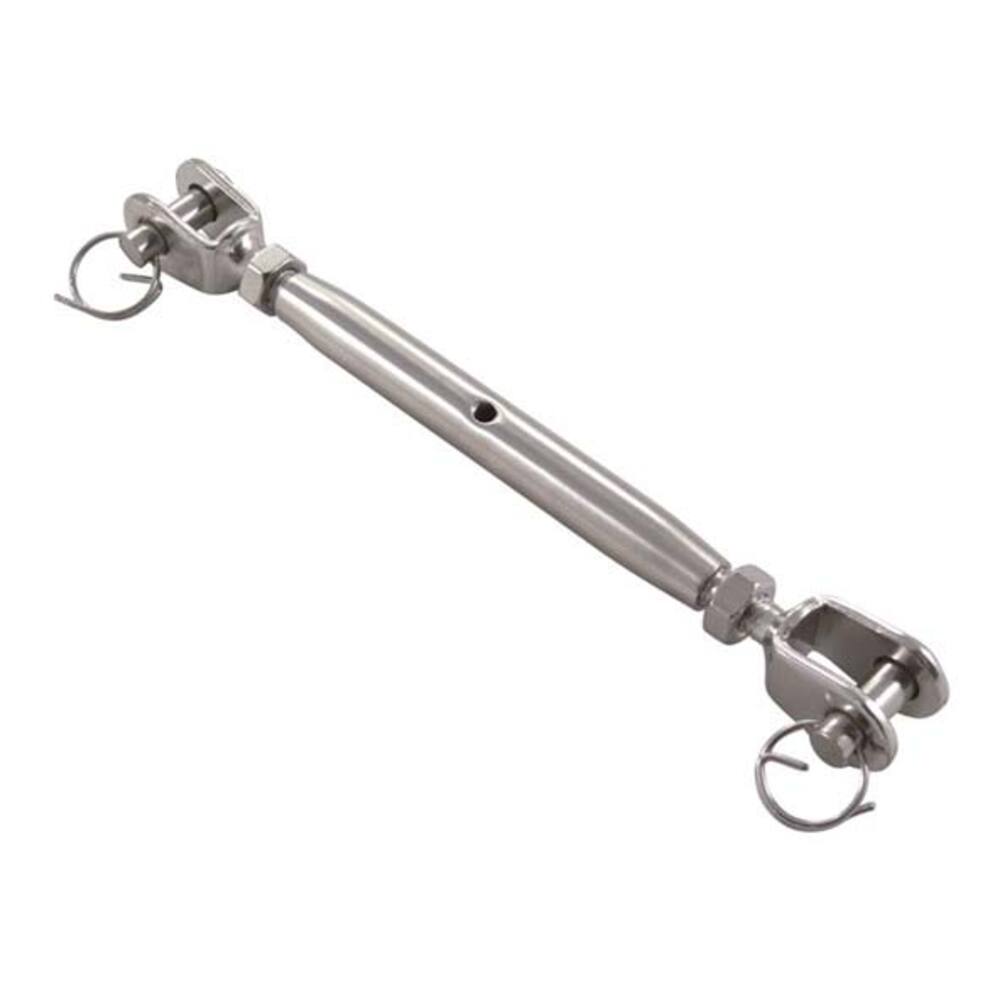

Stainless Steel Turnbuckle Closed Body Forks M6
- Closed body turnbuckle with locknuts on both ends and clip with nut and bolt for secure attachment.
- Designed with a safety factor of 4 for a minimum breaking load four times the working load.
- Material: stainless steel 316
- Thread type: metric
- Product code: 04.55.806

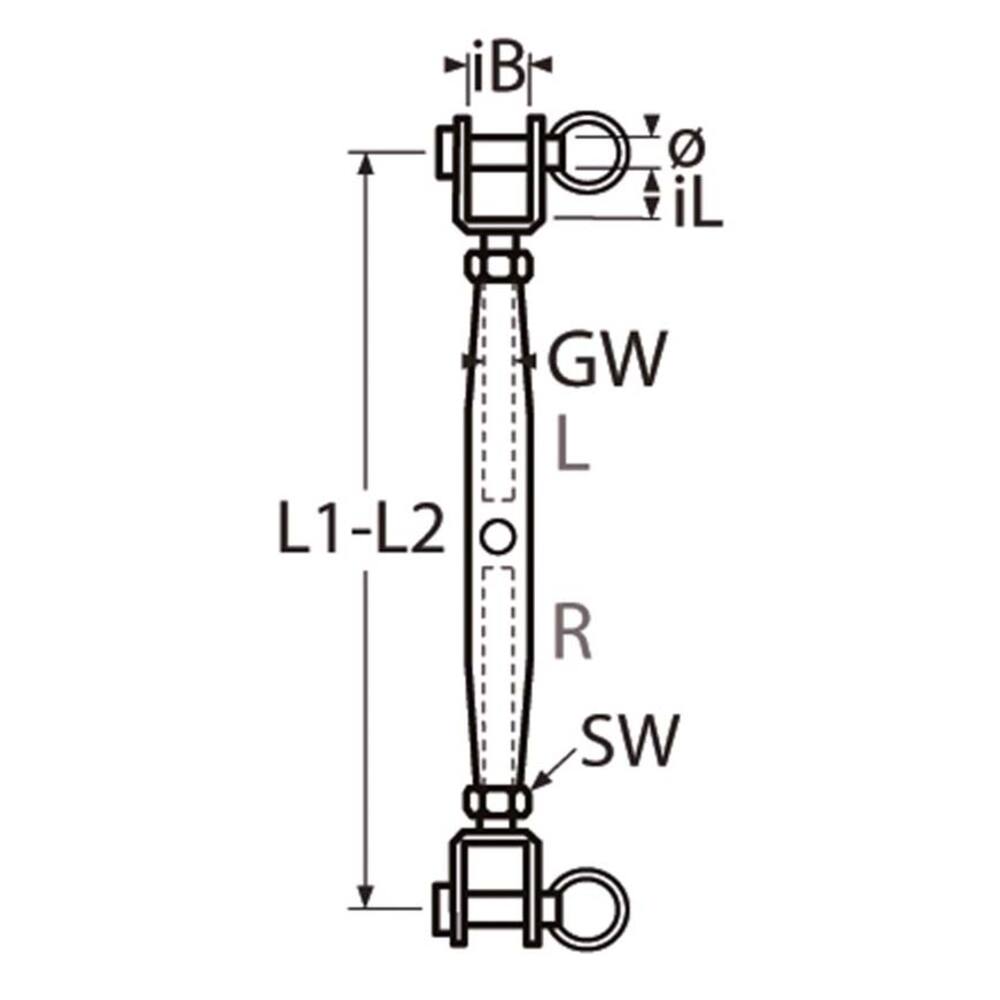

- Inside width (ib): 7.5 mm
- Inside length (il): 10 mm
- Approx. weight: 81 gr
- Thread (gw): M6
- Length 1 (l1): 220 mm
- Length 2 (l2): 150 mm
- Material-diameter (ø): 6 mm
- Drive (sw): SW8
- Safe working load: 275 kg
-
