ID
1311150
$ 166.06
1-2 weeks delivery time
-
+
Large M20 stainless steel closed body turnbuckle with locknuts and clip, made from 316 stainless steel with metric threads. Safety factor 4 ensures a safe working load of 3,200 kg. Measures 510 mm total length, 19 mm material diameter, 20 mm inside width, 30 mm inside length, weighing 1,817 gr.
- Description
- Ask a Question
-

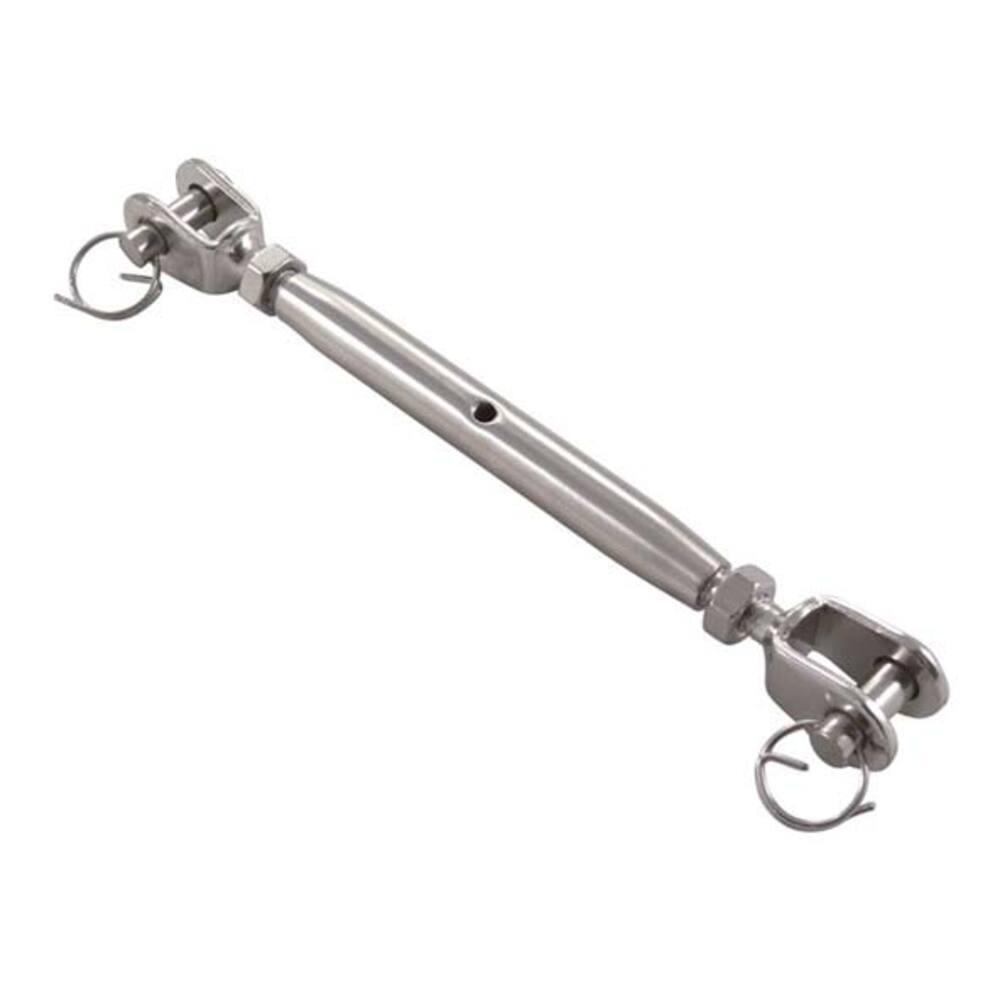

Stainless Steel Turnbuckle Closed Body Forks M20
- Large closed body turnbuckle with locknuts on both ends and clip with nut and bolt.
- Safety factor 4 ensures minimum breaking load four times the working load.
- Material: stainless steel 316
- Thread type: metric
- Product code: 04.55.820

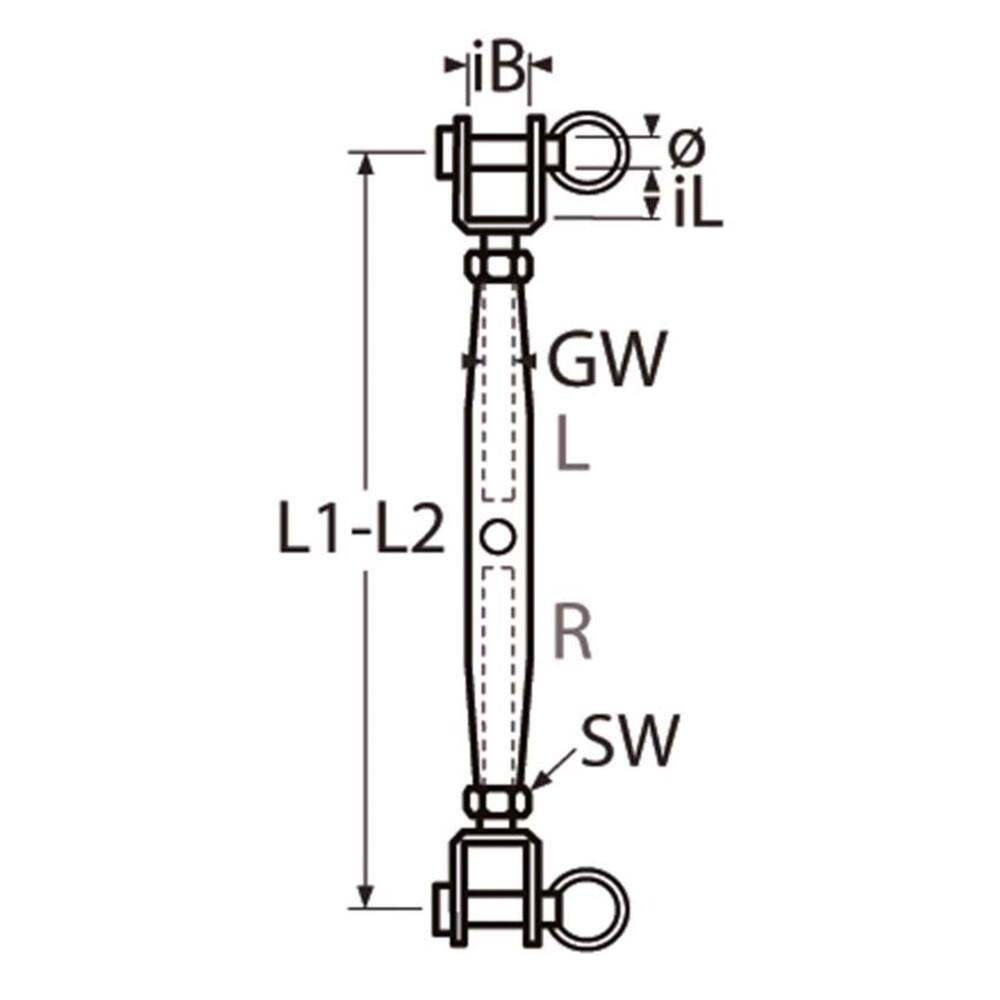

- Inside width (ib): 20 mm
- Inside length (il): 30 mm
- Approx. weight: 1,817 gr
- Thread (gw): M20
- Length 1 (l1): 510 mm
- Length 2 (l2): 360 mm
- Material-diameter (ø): 19 mm
- Drive (sw): SW27
- Safe working load: 3,200 kg
-
