ID
1311151
$ 21.53
1-2 weeks delivery time
-
+
Open body M8 turnbuckle with locknut, clip, and threaded terminal, made from 316 stainless steel with metric threads. Dimensions: 280 mm length, 8 mm material diameter, 11 mm inside width and length, 5 mm wire rope compatibility, weight 160 gr.
- Description
- Ask a Question
-

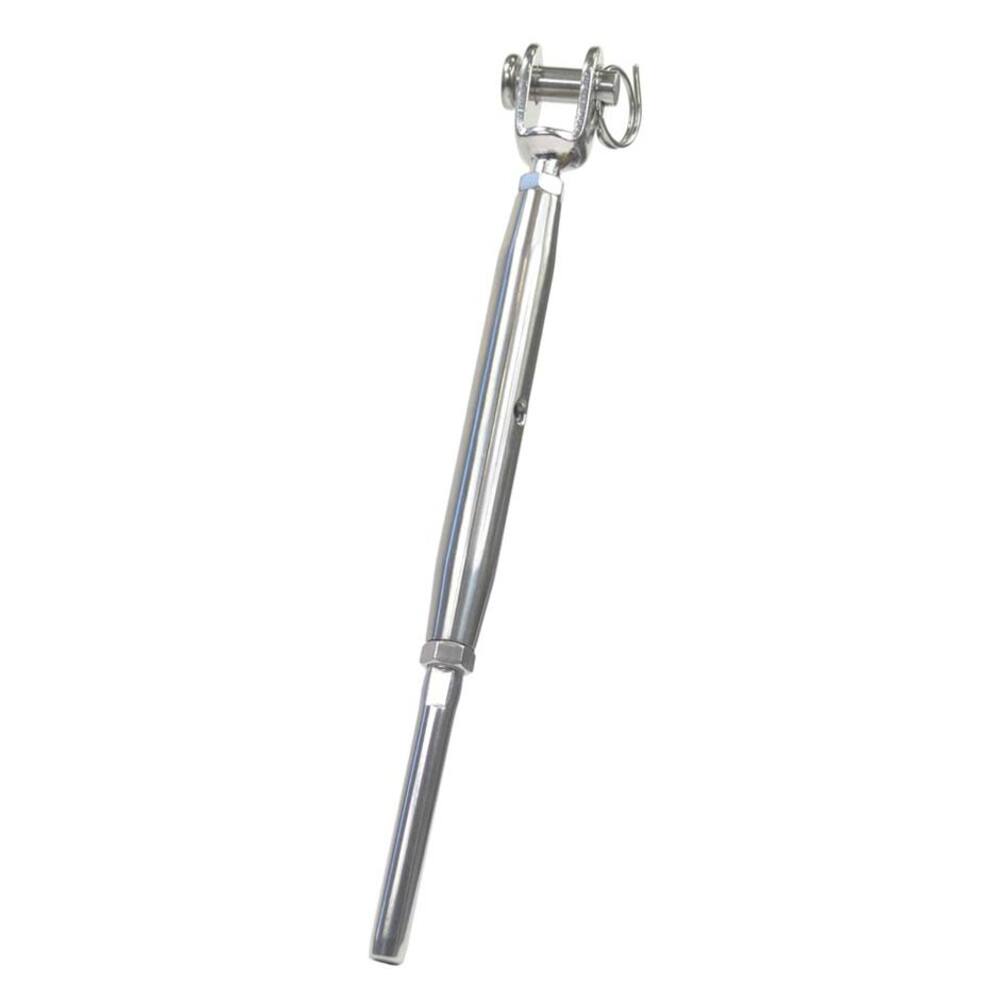

Stainless Steel Turnbuckle Fork/Thread Terminal M8/5mm
- Open body turnbuckle with a locknut and clip with nut and bolt on one side, and a threaded terminal on the other.
- Material: stainless steel 316
- Thread type: metric
- Product code: 04.56.308

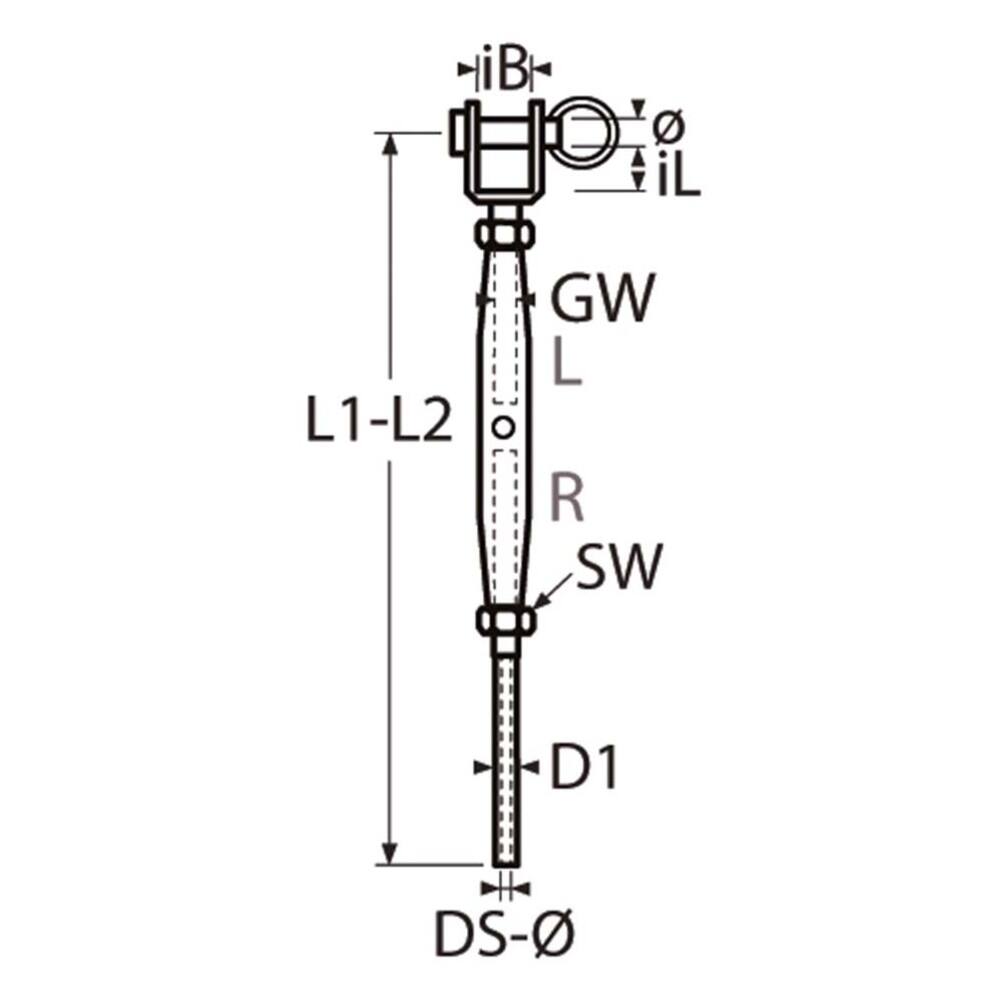

- Inside width (ib): 11 mm
- Inside length (il): 11 mm
- Approx. weight: 160 gr
- Diameter 1 (d1): 9 mm
- Thread (gw): M8
- Length 1 (l1): 280 mm
- Length 2 (l2): 205 mm
- Material-diameter (ø): 8 mm
- Drive (sw): SW10
- Wire rope diameter (ds-ø): 5 mm
-
