ID
1311152
$ 33.69
1-2 weeks delivery time
-
+
Open body M10 turnbuckle with locknut, clip, and threaded terminal, 316 stainless steel with metric threads. Supports 6 mm wire rope, total length 335 mm, material diameter 9 mm, inside width 12 mm, inside length 14 mm, weighing 300 gr.
- Description
- Ask a Question
-

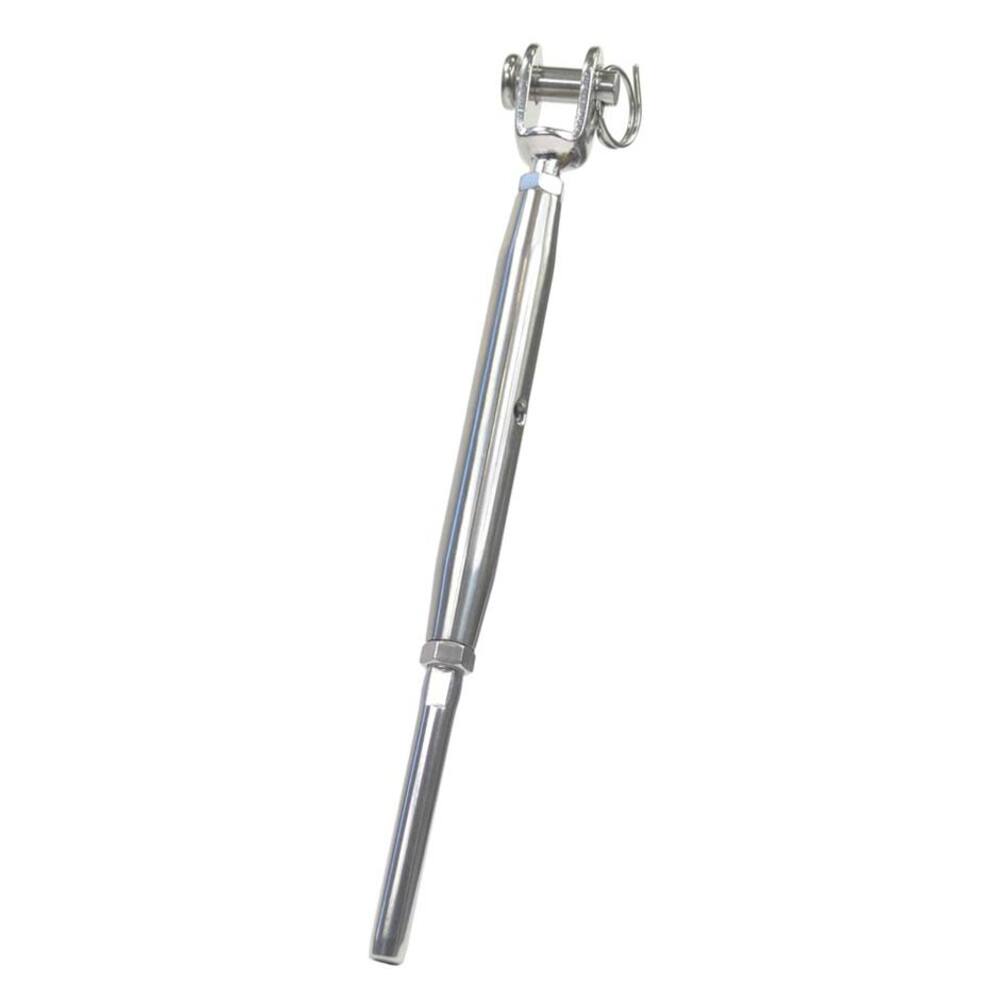

Stainless Steel Turnbuckle Fork/Thread Terminal M10/6mm
- Open body turnbuckle featuring a locknut with clip on one side and a threaded terminal on the other.
- Material: stainless steel 316
- Thread type: metric
- Product code: 04.56.310

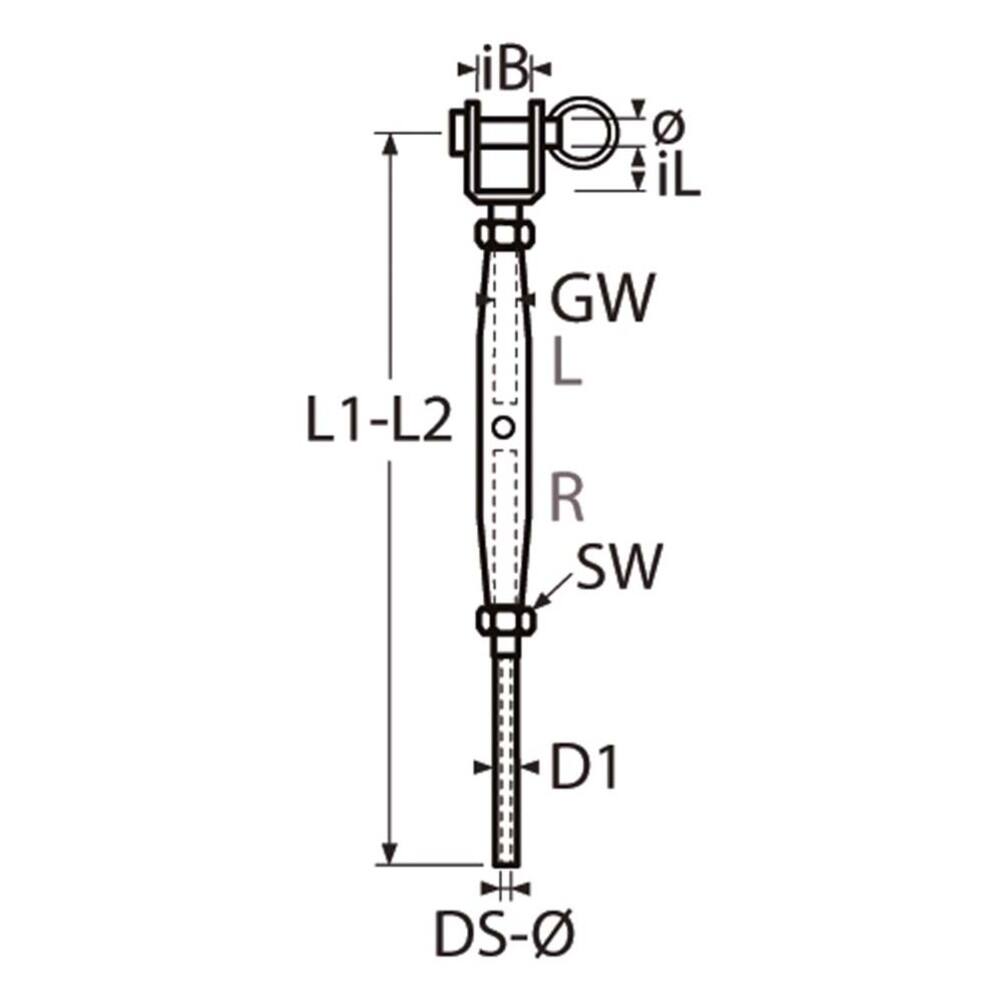

- Inside width (ib): 12 mm
- Inside length (il): 14 mm
- Approx. weight: 300 gr
- Diameter 1 (d1): 12.6 mm
- Thread (gw): M10
- Length 1 (l1): 335 mm
- Length 2 (l2): 245 mm
- Material-diameter (ø): 9 mm
- Drive (sw): SW13
- Wire rope diameter (ds-ø): 6 mm
-
