ID
1311144
$ 9.67
1-2 weeks delivery time
-
+
Compact stainless steel M5 turnbuckle with closed body, featuring locknuts on both ends, clip, nut, and bolt. Made from 316 stainless steel with metric threads, it has a safe working load of 200 kg and a safety factor of 4. Dimensions include 190 mm total length, 5 mm material diameter, 6.5 mm inside width, and 10 mm inside length, weighing approximately 55 gr.
- Description
- Ask a Question
-

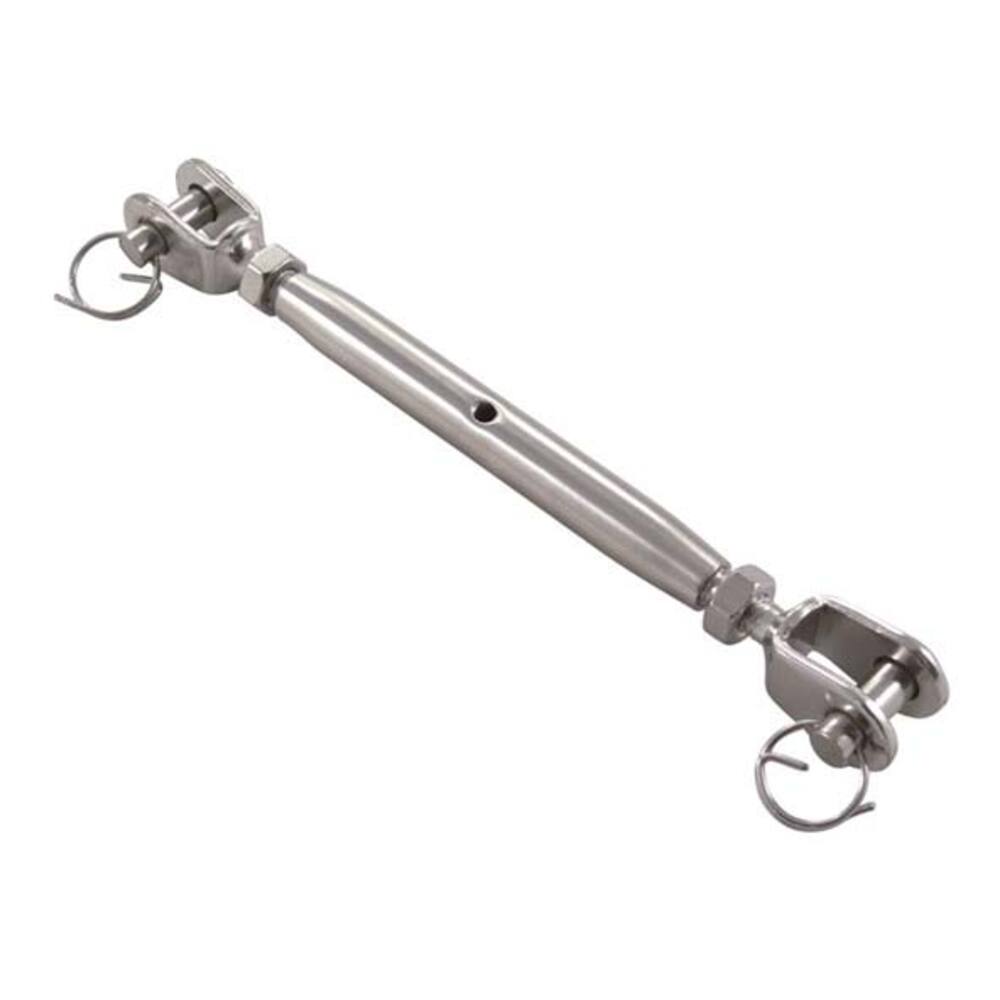

Stainless Steel Turnbuckle Closed Body Forks M5
- Compact closed body turnbuckle featuring locknuts on both ends, with an additional clip, nut, and bolt.
- Safety factor of 4 ensures the minimum breaking load is four times the working load.
- Material: stainless steel 316
- Thread type: metric
- Product code: 04.55.805

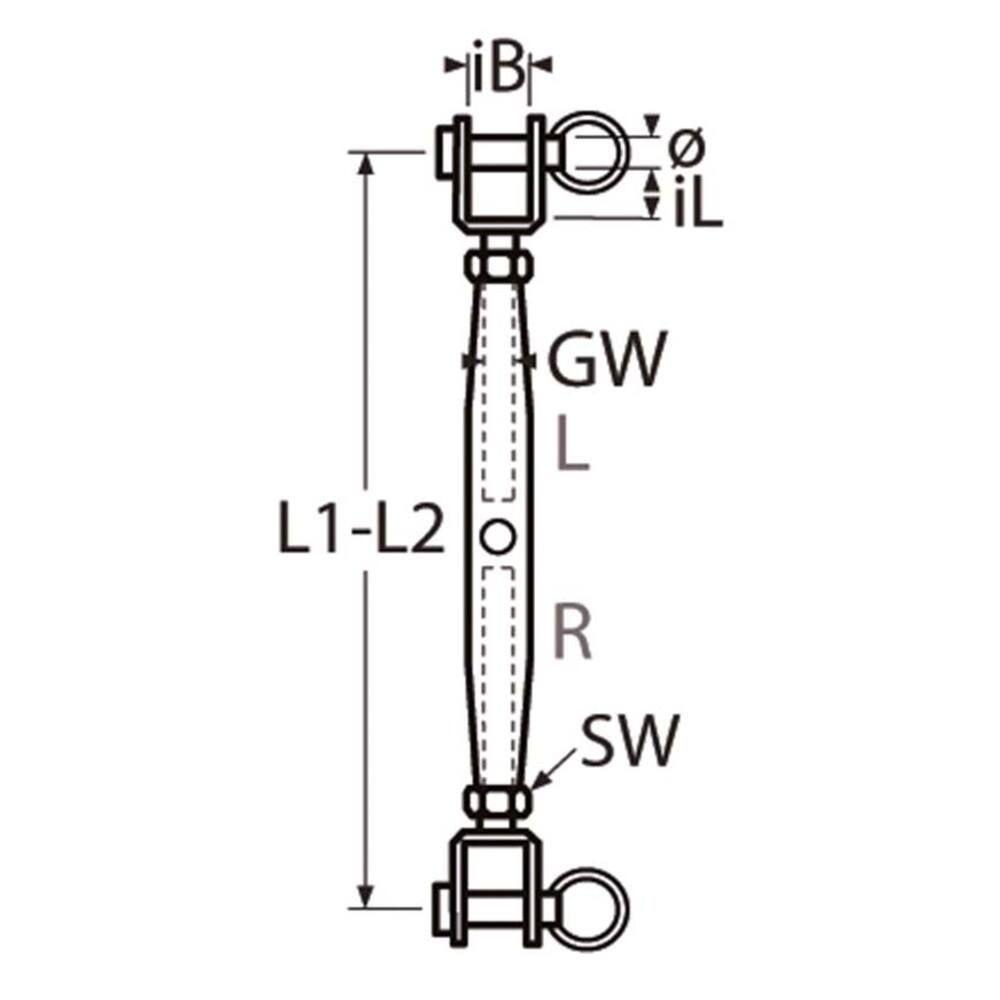

- Inside width (ib): 6.5 mm
- Inside length (il): 10 mm
- Approx. weight: 55 gr
- Thread (gw): M5
- Length 1 (l1): 190 mm
- Length 2 (l2): 130 mm
- Material-diameter (ø): 5 mm
- Drive (sw): SW7
- Safe working load: 200 kg
-
