ID
1355433
$ 92.56
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 7
- 8
- 10
- 12
- 8 5/8

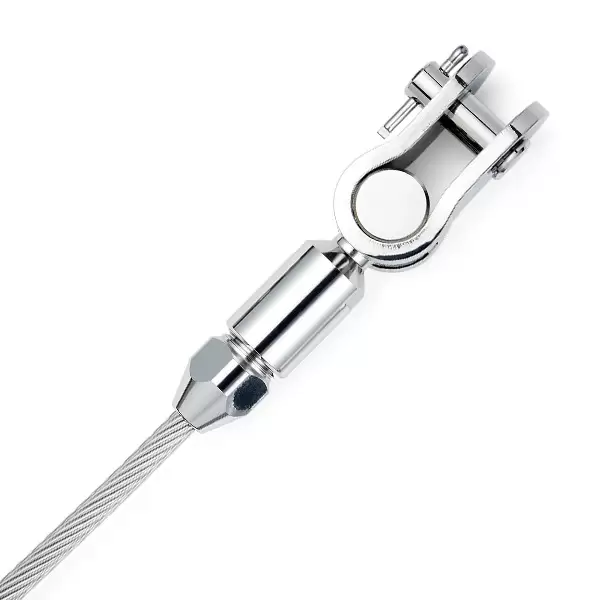

The STA-LOK 050 Toggle Forks are reusable self-fit toggle fork terminals designed for wire rope terminations in marine, architectural, and industrial applications. Manufactured from high specification 316 stainless steel, these fittings are supplied for 1×19 wire rope as standard and can also be used with 7 strand and compacted strand wire ropes when fitted with the appropriate wedges. The terminals are suitable for right-hand and left-hand lay wire ropes, require only basic hand tools, and do not require pre-measurement before assembly.
- Description
- Ask a Question
-
STA-LOK 050 Toggle Forks – 316 Stainless Steel Self-Fit Toggle Fork Terminals for 1×19 Wire
The STA-LOK 050 Toggle Forks are reusable self-fit toggle fork terminals designed for secure wire rope terminations in marine, architectural, and industrial applications. Manufactured from high specification 316 stainless steel, these fittings provide high corrosion resistance and long service life in demanding environments.
These terminals are supplied for 1×19 wire rope as standard and can also be used with 7 strand and compacted strand wire ropes when the appropriate wedges are fitted. The design is suitable for both right-hand and left-hand lay wire ropes.
STA-LOK self-fit terminals are a reusable alternative to machine swaging. Installation requires only basic hand tools and no pre-measurement is required before fitting. The toggle fork design provides a secure articulated connection for rigging and support assemblies.
Key Features
- Reusable self-fit toggle fork terminals
- Manufactured from 316 stainless steel
- Supplied for 1×19 wire as standard
- Suitable for right-hand and left-hand lay wire ropes
- Basic hand tools required for installation
- No pre-measurement required
- Toggle fork terminal design for articulated connection
- Optional wedges available for 7 strand and compacted strand wire ropes
Available Variants
Item Number Wire Size (Metric) Wire Size (Imperial) A (mm) B (mm) D (mm) P (mm) Weight (kg) ST050-04 4 mm 5/32" 48.0 19.0 8.4 7.9 0.080 ST050-05 5 mm - 56.0 20.0 9.9 9.5 0.140 ST050-06 6 mm - 61.0 25.0 11.5 11.1 0.220 ST050-07 7 mm 9/32" 70.0 28.0 13.1 12.7 0.340 ST050-08 8 mm 5/16" 72.0 28.0 13.1 12.7 0.400 ST050-08-5/8 8 mm 5/16" 87.0 33.0 16.3 16.0 0.600 ST050-10 10 mm - 87.0 33.0 16.3 16.0 0.680 ST050-12 12 mm - 104.0 34.0 25.0 19.1 0.680
Technical Information
- Material: 316 stainless steel
- Terminal type: Self-fit toggle fork terminal
- Standard wire construction: 1×19
- Alternative wire constructions: 7 strand and compacted strand with optional wedges
- Installation: Basic hand tools only
-
