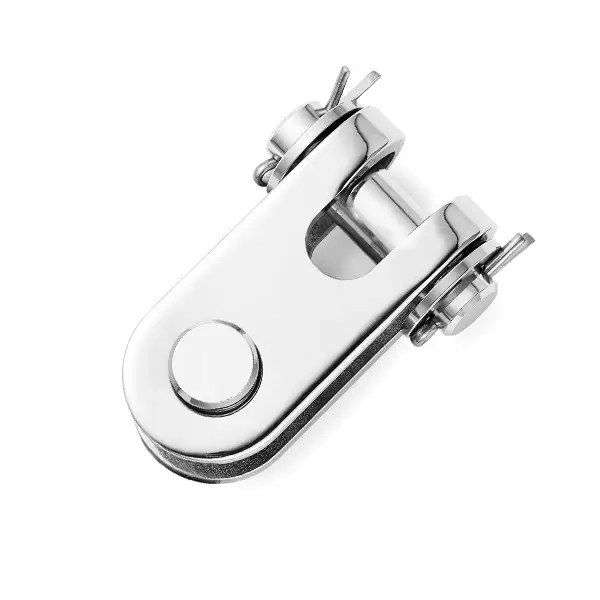

STA-LOK DJT Double Jaw Toggles 316 Stainless Steel

ID 1355796

$ 52.53

1-2 weeks delivery time

Item:

5/16
1/4
3/8
7/16
1/2
5/8

The STA-LOK DJT Double Jaw Toggles are manufactured from high specification 316 stainless steel and designed for secure articulated connections in rigging and turnbuckle assemblies. The range includes pin sizes from 1/4" to 1 3/8", with dimensions from A 16.0 mm to 90.0 mm and B 25.0 mm to 140.0 mm. Depending on size, weight ranges from 0.020 kg to 5.430 kg.

Description
Ask a Question

STA-LOK DJT Double Jaw Toggles – 316 Stainless Steel Jaw Toggles for Rigging and Turnbuckle Assemblies

The STA-LOK DJT Double Jaw Toggles are designed for rigging systems requiring a secure jaw-to-jaw articulated connection. Manufactured from high specification 316 stainless steel, these fittings provide corrosion resistance and durability for demanding marine and structural applications.

The range includes multiple sizes for different connection requirements, with pin sizes from 1/4" up to 1 3/8". The double jaw design supports reliable alignment and connection in rigging and turnbuckle assemblies.

Key Features

Double jaw toggle design for articulated connections
Manufactured from high specification 316 stainless steel
Suitable for marine and rigging applications
Available in a wide range of sizes
Designed for secure jaw-to-jaw connection

Applications

Suitable for rigging systems, turnbuckle assemblies, and marine hardware installations where a double jaw toggle connection is required.

Technical Specifications

SKU	A (MM)	A (INCH)	B (MM)	B (INCH)	D (MM)	D (INCH)	E (MM)	E (INCH)	P (MM)	P (INCH)	Weight (KG)	Weight (LB)
DJT-14	16.0	0.630	25.0	0.984	7.6	0.299	6.7	0.264	6.4	1/4"	0.020	0.044
DJT-516	19.0	0.748	30.0	1.181	9.2	0.362	8.3	0.327	7.9	5/16"	0.060	0.132
DJT-38	22.2	0.875	34.0	1.338	10.8	0.425	9.9	0.390	9.5	3/8"	0.080	0.176
DJT-716	28.6	1.126	40.0	1.574	12.3	0.484	11.5	0.453	11.1	7/16"	0.120	0.264
DJT-12	32.0	1.260	44.0	1.732	13.0	0.512	13.0	0.512	12.7	1/2"	0.180	0.396
DJT-58	38.1	1.500	52.0	2.047	18.0	0.709	16.3	0.642	16.0	5/8"	0.360	0.792
DJT-34	48.0	1.890	81.0	3.189	20.0	0.790	19.5	0.768	18.5	3/4"	0.900	1.980
DJT-78	60.0	2.362	92.0	3.622	25.0	1.000	23.0	0.906	21.5	7/8"	1.420	3.124
DJT-100	64.0	2.520	99.0	3.898	28.0	1.130	26.0	1.024	25.0	1"	1.860	4.092
DJT-118	70.0	2.756	105.0	4.134	31.5	1.250	29.0	1.142	28.2	1 1/8"	2.850	6.270
DJT-114	80.0	3.150	119.0	4.685	35.0	1.375	34.0	1.339	31.5	1 1/4"	4.020	8.844
DJT-138	90.0	3.543	140.0	5.512	38.0	1.500	35.0	1.378	34.6	1 3/8"	5.430	11.946

Construction and Design

Double jaw stainless steel construction
316 stainless steel for corrosion resistance
Wide size range for different rigging configurations
Suitable for articulated connections in marine hardware systems
