The STA-LOK 034 Forks are reusable self-fit fork terminals designed for wire rope terminations in marine, architectural, and industrial applications. Manufactured from high specification 316 stainless steel, these fittings are supplied for 1×19 wire rope as standard and can also be used with 7 strand and compacted strand wire ropes when fitted with the appropriate wedges. The terminals are suitable for right-hand and left-hand lay wire ropes, require only basic hand tools, and do not require pre-measurement before assembly.
- Description
- Ask a Question
-

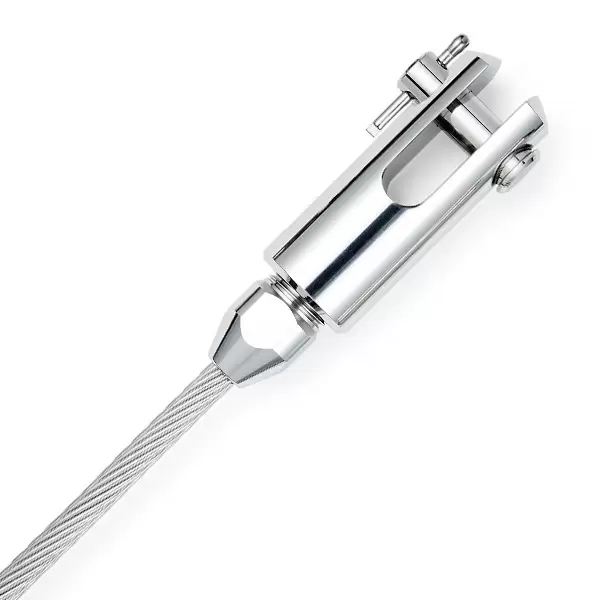

STA-LOK 034 Forks – 316 Stainless Steel Self-Fit Fork Terminals for 1×19 Wire
The STA-LOK 034 Forks are reusable self-fit fork terminals designed for secure wire rope terminations in marine, architectural, and industrial applications. Manufactured from high specification 316 stainless steel, these fittings provide high corrosion resistance and long service life in demanding environments.
These terminals are supplied for 1×19 wire rope as standard and can also be used with 7 strand and compacted strand wire ropes when the appropriate wedges are fitted. The design is suitable for both right-hand and left-hand lay wire ropes.
STA-LOK self-fit terminals are a reusable alternative to machine swaging. Installation requires only basic hand tools and no pre-measurement is required before fitting. The fork design with removable clevis pin provides a secure and flexible connection.
Key Features
- Reusable self-fit fork terminals
- Manufactured from 316 stainless steel
- Supplied for 1×19 wire as standard
- Suitable for right-hand and left-hand lay wire ropes
- Basic hand tools required for installation
- No pre-measurement required
- Fork terminal design with clevis pin connection
- Optional wedges available for 7 strand and compacted strand wire ropes
Available Variants
Item Number Wire Size (Metric) Wire Size (Imperial) A (mm) B (mm) D (mm) P (mm) Weight (kg) ST034-03 3 mm 1/8" 15.5 10.0 5.5 5.0 0.040 ST034-04 4 mm 5/32" 21.1 14.7 6.4 6.4 0.060 ST034-05 5 mm - 29.5 18.0 8.0 8.0 0.100 ST034-06 6 mm - 37.1 22.2 11.1 10.9 0.220 ST034-07 7 mm 9/32" 33.9 25.1 11.1 10.9 0.240 ST034-08 8 mm 5/16" 43.9 26.3 13.7 12.6 0.420 ST034-10 10 mm - 50.1 29.4 13.7 15.6 0.620 ST034-12 12 mm - 46.0 33.3 19.1 18.5 1.180 ST034-14 14 mm 9/16" 54.0 38.1 20.4 21.5 1.580 ST034-16 16 mm 5/8" 72.7 40.0 20.4 21.5 1.980 ST034-19 19 mm 3/4" 92.0 50.0 27.8 27.5 4.100 ST034-22 22 mm 7/8" 92.0 60.3 34.9 33.0 5.600 034-26 26 mm 1" 92.0 60.3 34.9 33.0 7.600
Technical Information
- Material: 316 stainless steel
- Terminal type: Self-fit fork terminal
- Standard wire construction: 1×19
- Alternative wire constructions: 7 strand and compacted strand with optional wedges
- Installation: Basic hand tools only
-
