ID
1355405
$ 51.91
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 7
- 10
- 12
- 14
- 16
- 19
- 22
- 8 1/2
- 8 5/8
- 12 7/8
The STA-LOK 033 Eyes are reusable self-fit eye terminals designed for wire rope terminations in marine, architectural, and industrial applications. Manufactured from high specification 316 stainless steel, these fittings are supplied for 1×19 wire rope as standard and can also be used with 7 strand and compacted strand wire ropes when fitted with the appropriate wedges. The terminals are suitable for right-hand and left-hand lay wire ropes, require only basic hand tools, and do not require pre-measurement before assembly.
- Description
- Ask a Question
-

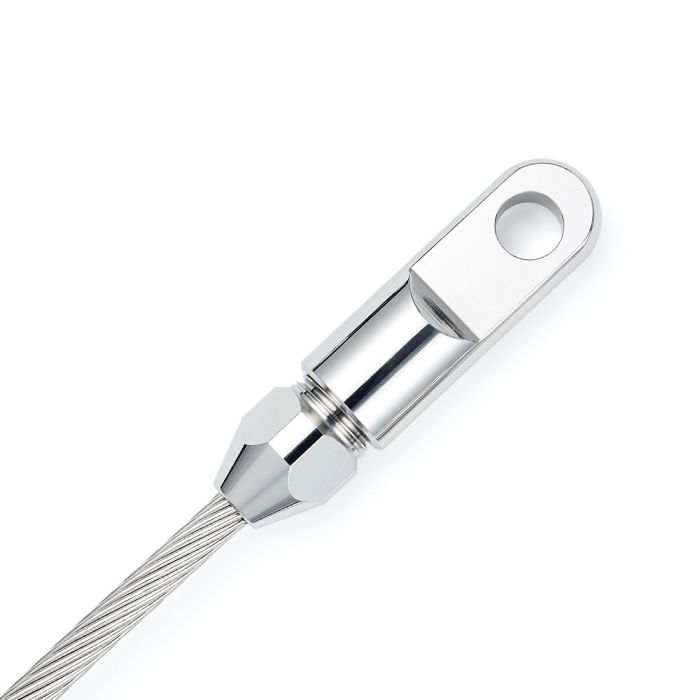

STA-LOK 033 Eyes – 316 Stainless Steel Self-Fit Eye Terminals for 1×19 Wire
The STA-LOK 033 Eyes are reusable self-fit eye terminals designed for secure wire rope terminations in marine, architectural, and industrial applications. Manufactured from high specification 316 stainless steel, these fittings provide high corrosion resistance and are designed for long-term service in demanding environments.
These terminals are supplied for 1×19 wire rope as standard and can also be used with 7 strand and compacted strand wire ropes when the appropriate wedges are fitted. The design is suitable for both right-hand and left-hand lay wire ropes.
STA-LOK self-fit terminals are a reusable alternative to machine swaging. Installation requires only basic hand tools and no pre-measurement is required before fitting.
Key Features
- Reusable self-fit eye terminals
- Manufactured from 316 stainless steel
- Supplied for 1×19 wire as standard
- Suitable for right-hand and left-hand lay wire ropes
- Basic hand tools required for installation
- No pre-measurement required
- Optional wedges available for 7 strand and compacted strand wire ropes
Available Variants
Item Number Wire Size (Metric) Wire Size (Imperial) A (mm) B (mm) D (mm) H (mm) Weight (kg) ST033-03 3 mm 1/8" 17.9 10.0 5.0 6.5 0.020 ST033-04 4 mm 5/32" 20.3 14.7 5.8 8.0 0.040 ST033-05 5 mm - 24.4 18.0 7.5 10.0 0.080 ST033-06 6 mm - 31.0 22.2 9.5 13.0 0.140 ST033-07 7 mm 9/32" 32.5 24.6 10.5 13.0 0.160 ST033-08-1/2 8 mm 5/16" 35.7 27.0 12.0 13.0 0.240 ST033-08-5/8 8 mm 5/16" 35.7 27.0 13.5 16.0 0.280 ST033-10 10 mm - 41.1 29.2 13.5 16.0 0.340 ST033-12 12 mm - 42.8 33.3 19.0 19.5 0.680 ST033-12-7/8 12 mm - 42.8 33.3 19.0 22.5 0.700 ST033-14 14 mm 9/16" 55.6 38.1 20.0 22.5 1.100 ST033-16 16 mm 5/8" 59.0 40.0 20.0 22.5 1.420 ST033-19 19 mm 3/4" 68.3 49.2 27.0 28.6 2.820 ST033-22 22 mm 7/8" 82.6 60.3 33.3 35.0 3.960
Technical Information
- Material: 316 stainless steel
- Terminal type: Self-fit eye terminal
- Standard wire construction: 1×19
- Alternative wire constructions: 7 strand and compacted strand with optional wedges
- Installation: Basic hand tools only
-
