The Plastimo Twisted Stainless Steel Shackles are designed for marine rigging and fastening applications where a 90° twisted connection simplifies alignment between fittings. Manufactured from marine-grade AISI 316 stainless steel, these corrosion-resistant shackles provide reliable performance in saltwater environments. Available in diameters from Ø4 mm to Ø10 mm, they offer break loads of up to 4,500 kg depending on the selected size.
- Description
- Ask a Question
-

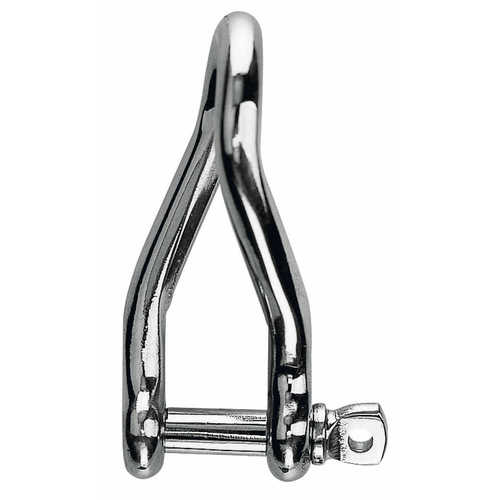

Plastimo Twisted Stainless Steel Shackles
The Plastimo Twisted Stainless Steel Shackles are engineered for marine applications requiring a twisted connection between attachment points. Manufactured from premium AISI 316 stainless steel, these shackles provide excellent corrosion resistance and long service life in demanding marine environments.
The twisted body allows a natural 90° orientation between connected components, reducing unnecessary twisting of ropes, straps or fittings while improving alignment in rigging and deck hardware installations. The range covers multiple diameters suitable for both light-duty and heavy-duty marine applications.
Features
- Original Plastimo marine hardware
- Twisted shackle design for improved alignment
- Manufactured from marine-grade AISI 316 stainless steel
- Excellent resistance to seawater corrosion
- Strong and durable construction
- Suitable for rigging, deck hardware and general fastening
- Available in diameters from Ø4 mm to Ø10 mm
Available Variations
Plastimo SKU OEM P/N Diameter Length Break Load Safe Working Load 29761 2409-0104 Ø4 mm 23 mm 800 kg 160 kg 29762 2409-0105 Ø5 mm 28 mm 1200 kg 250 kg 29763 2409-0106 Ø6 mm 33 mm 1600 kg 375 kg 29764 2409-0108 Ø8 mm 44 mm 2800 kg 625 kg 29765 2409-0110 Ø10 mm 55 mm 4500 kg 1000 kg
Technical Specifications
Brand Plastimo Product Type Twisted Shackle Material AISI 316 Stainless Steel Design Twisted (90° Orientation) Available Sizes Ø4, Ø5, Ø6, Ø8 and Ø10 mm Corrosion Resistance Marine Grade Applications Rigging, deck hardware, blocks, chains, marine fastening and general hardware connections
Applications
- Sailing yacht rigging
- Standing and running rigging
- Deck hardware installation
- Blocks and pulleys
- Chain and rope connections
- Mooring equipment
- General marine fastening applications
-
