ID
1380556
$ 30.46
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
The Osculati AISI 316 Stainless Steel Press-Fit Swivel Toggle Terminals are designed for permanent installation on stainless steel wire ropes to create shrouds, forestays, and other standing rigging assemblies. Manufactured from AISI 316 stainless steel, these swivel toggle terminals provide improved articulation while maintaining a secure press-fit connection. The range is available for 3 mm to 6 mm wire ropes for professional marine rigging applications.
- Description
- Ask a Question
-
Osculati AISI 316 Stainless Steel Press-Fit Swivel Toggle Terminals for 3–6 mm Wire Rope
The Osculati AISI 316 Stainless Steel Press-Fit Swivel Toggle Terminals are designed for permanent termination of stainless steel wire ropes. Installed by press-fitting onto the cable end, these terminals are intended for the construction of shrouds, forestays, and other standing rigging assemblies, while the swivel toggle design allows improved articulation within the rigging system.
Manufactured from AISI 316 stainless steel, the terminals offer excellent corrosion resistance for marine environments and are available for wire rope diameters from 3 mm to 6 mm.
Key Features
- Manufactured from AISI 316 stainless steel.
- Designed for permanent press-fitting onto stainless steel wire ropes.
- Swivel toggle terminal configuration.
- Suitable for creating shrouds, forestays, and standing rigging.
- Allows improved articulation within the rigging system.
- Available for wire rope diameters from 3 mm to 6 mm.
- Excellent corrosion resistance for marine environments.
Available Versions

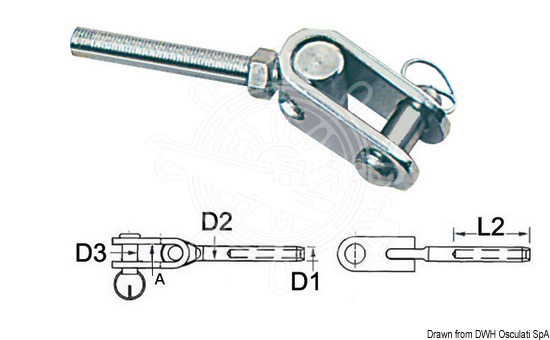

Osculati Code Cable Diameter D1 D2 D3 L2 05.193.03 3 mm 3.5 mm 6.35 mm 6.3 mm 38 mm 05.193.04 4 mm 4.4 mm 7.5 mm 8 mm 45 mm 05.193.05 5 mm 5.3 mm 9 mm 9.5 mm 51 mm 05.193.06 6 mm 6.3 mm 12.5 mm 11 mm 64 mm
Technical Specifications
Specification Details Brand Osculati Material AISI 316 Stainless Steel Product Type Press-Fit Swivel Toggle Terminal Installation Method Press-Fitting Suitable Cable Type Stainless Steel Wire Rope Suitable Cable Diameter 3–6 mm (depending on version) Application Shrouds, Forestays, and Standing Rigging
Applications
- Standing rigging installations.
- Shroud fabrication.
- Forestay assemblies.
- Permanent stainless steel wire rope terminations.
- Rigging applications requiring a swivel toggle connection.
-
