ID
1380582
$ 21.24
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 7
- 8
The Osculati AISI 316 Danish System Ball Head Terminals are designed for fast installation on AISI 316 stainless steel 19/49/133 wire ropes by inserting the cable into the terminal body. Featuring a ball head design, these terminals provide a durable and corrosion-resistant solution for marine rigging applications. Available for 4 mm to 8 mm wire ropes, they are manufactured from AISI 316 stainless steel and offered in multiple dimensional configurations.
- Description
- Ask a Question
-

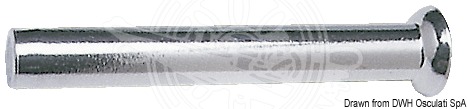

Osculati AISI 316 Danish System Ball Head Terminals for 4–8 mm Wire Rope
The Osculati AISI 316 Danish System Ball Head Terminals are designed for quick and reliable termination of stainless steel wire ropes. Using the Danish System, installation is fast and straightforward by inserting the wire rope into the terminal body before completing the assembly, creating a secure mechanical connection.
Manufactured from AISI 316 stainless steel, these ball head terminals are intended for use with AISI 316 stainless steel 19/49/133 wire ropes. The range is available for wire rope diameters from 4 mm to 8 mm, making it suitable for a variety of standing rigging and marine cable applications.
Key Features
- Manufactured from AISI 316 stainless steel.
- Danish System for fast and simple installation.
- Ball head terminal design.
- Compatible with AISI 316 stainless steel 19/49/133 wire ropes.
- Suitable for wire rope diameters from 4 mm to 8 mm.
- Excellent corrosion resistance for marine environments.
- Designed for standing rigging and marine cable assemblies.
Available Versions
Osculati Code Wire Rope Diameter Head Ø A C D E 05.200.04 4 mm 16 mm 69 mm 45 mm 4.4 mm 7.5 mm 05.200.05 5 mm 19 mm 79 mm 51 mm 5.3 mm 9 mm 05.200.06 6 mm 20 mm 90 mm 64 mm 6.5 mm 12.58 mm 05.200.07 7 mm 21.3 mm 94 mm 70 mm 7.5 mm 14.2 mm 05.200.08 8 mm 26.3 mm 116 mm 83 mm 8.4 mm 16 mm
Technical Specifications
Specification Details Brand Osculati Material AISI 316 Stainless Steel Product Type Danish System Ball Head Terminal Compatible Wire Rope AISI 316 Stainless Steel 19/49/133 Construction Suitable Wire Rope Diameter 4–8 mm (depending on version) Installation System Danish System
Applications
- Standing rigging assemblies.
- Marine wire rope terminations.
- Shrouds and forestays.
- Sailboat rigging installation and maintenance.
-
