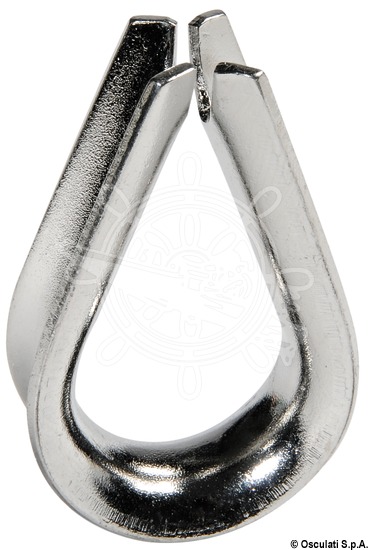

The Osculati Mirror-Polished Stainless Steel Wire Rope Thimbles are designed to protect eye splices from chafing on ropes and stainless steel wire cables. The range includes Standard and Heavy Duty versions manufactured from mirror-polished stainless steel, covering cable diameters from 2 mm to 40 mm. Standard versions for 2–14 mm are supplied in boxes of 10 pieces, while larger sizes are available individually with specified weights.
- Description
- Ask a Question
-
Osculati Mirror-Polished Stainless Steel Wire Rope Thimbles – Standard & Heavy Duty, 2–40 mm
The Osculati Stainless Steel Wire Rope Thimbles are designed to protect eye splices from abrasion and wear when used with ropes or stainless steel wire cables. Manufactured from mirror-polished stainless steel, they help maintain the shape of the eye while reducing friction and extending the service life of the rope or cable.
The range includes both Standard and Heavy Duty versions for wire rope diameters from 2 mm to 40 mm. Standard sizes from 2 mm to 14 mm are supplied in boxes of 10 pieces, while larger sizes are available individually with specified weights.
Key Features
- Mirror-polished stainless steel construction.
- Protects eye splices from chafing and wear.
- Suitable for ropes and stainless steel wire cables.
- Available in Standard and Heavy Duty versions.
- Wire rope sizes from 2 mm to 40 mm.
- Selected small sizes supplied in boxes of 10 pieces.
Available Versions
Version Osculati Code Cable Diameter Weight Packaging Standard 05.326.02 2 mm - Box of 10 pcs Standard 05.326.25 2.5 mm - Box of 10 pcs Standard 05.326.03 3 mm - Box of 10 pcs Standard 05.326.04 4 mm - Box of 10 pcs Standard 05.326.05 5 mm - Box of 10 pcs Standard 05.326.06 6 mm - Box of 10 pcs Standard 05.326.08 8 mm - Box of 10 pcs Standard 05.326.10 10 mm - Box of 10 pcs Standard 05.326.12 12 mm - Box of 10 pcs Standard 05.326.14 14 mm - Box of 10 pcs Standard 05.326.16 16 mm 60 g Individual Standard 05.326.18 18 mm 78 g Individual Standard 05.326.20 20 mm 110 g Individual Standard 05.326.22 22 mm 184 g Individual Standard 05.326.24 24 mm 224 g Individual Heavy Duty 05.327.16 16 mm 125 g Individual Heavy Duty 05.327.18 18 mm 156 g Individual Heavy Duty 05.327.20 20 mm 266 g Individual Heavy Duty 05.327.22 22 mm 326 g Individual Heavy Duty 05.327.24 24 mm 505 g Individual Heavy Duty 05.327.28 28 mm 590 g Individual Heavy Duty 05.327.30 30/32 mm 930 g Individual Heavy Duty 05.327.34 34/38 mm 1320 g Individual Heavy Duty 05.327.40 40 mm 2085 g Individual
Technical Specifications
Specification Details Brand Osculati Product Type Wire Rope Thimble Material Mirror-Polished Stainless Steel Versions Standard / Heavy Duty Suitable Cable Diameter 2–40 mm (depending on version) Application Protection of eye splices on ropes and stainless steel wire cables
Applications
- Wire rope eye splices.
- Marine standing rigging.
- Lifeline and guardrail systems.
- Mooring and general marine rope assemblies.
-
