The Osculati AISI 316 Stainless Steel Press-Fit Eye Terminals are designed for permanent installation on the ends of stainless steel wire ropes to create shrouds, forestays, and other standing rigging assemblies. Manufactured from AISI 316 stainless steel, these terminals are available for 2.5 mm to 12 mm wire ropes and offer a corrosion-resistant solution for professional marine rigging applications.
- Description
- Ask a Question
-
Osculati AISI 316 Stainless Steel Press-Fit Eye Terminals for 2.5–12 mm Wire Rope
The Osculati AISI 316 Stainless Steel Press-Fit Eye Terminals are designed for permanent termination of stainless steel wire ropes. Installed by press-fitting onto the cable end, these terminals are intended for the construction of shrouds, forestays, and other standing rigging assemblies where strength and corrosion resistance are essential.
Manufactured from AISI 316 stainless steel, the range covers wire rope diameters from 2.5 mm to 12 mm, providing multiple size options for marine rigging installations.
Key Features
- Manufactured from AISI 316 stainless steel.
- Designed for permanent press-fitting onto stainless steel wire ropes.
- Eye terminal configuration.
- Suitable for creating shrouds, forestays, and standing rigging.
- Available for wire rope diameters from 2.5 mm to 12 mm.
- Excellent corrosion resistance for marine environments.
Available Versions

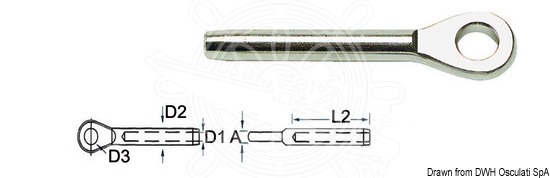

Osculati Code Cable Diameter D1 D2 D3 L2 A 05.190.25 2.5 mm 2.5 mm 5.5 mm 5.5 mm 32 mm 3 mm 05.190.03 3 mm 3.5 mm 6.35 mm 6.5 mm 38 mm 4 mm 05.190.04 4 mm 4.4 mm 7.5 mm 8.5 mm 45 mm 5 mm 05.190.05 5 mm 5.3 mm 9 mm 10.5 mm 51 mm 6 mm 05.190.06 6 mm 6.3 mm 12.5 mm 13 mm 64 mm 8 mm 05.190.07 7 mm 7.5 mm 14.3 mm 13 mm 70 mm 9 mm 05.190.08 8 mm 8.4 mm 16 mm 14.5 mm 83 mm 10 mm 05.190.10 10 mm 10.5 mm 17.8 mm 16.3 mm 89 mm 11 mm 05.190.12 12 mm 12.5 mm 21.4 mm 19.3 mm 105 mm 15 mm
Technical Specifications
Specification Details Brand Osculati Material AISI 316 Stainless Steel Product Type Press-Fit Eye Terminal Installation Method Press-Fitting Suitable Cable Type Stainless Steel Wire Rope Suitable Cable Diameter 2.5–12 mm (depending on version) Application Shrouds, Forestays, and Standing Rigging
Applications
- Standing rigging installations.
- Shroud fabrication.
- Forestay assemblies.
- Permanent stainless steel wire rope terminations.
-
