ID
1380575
$ 39.89
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 8
- 10

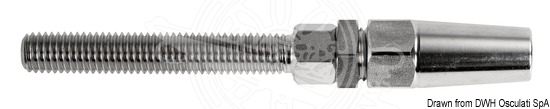

The Osculati AISI 316 Danish System Threaded Terminals are designed for installation into tensioners with right-hand metric threads and are compatible with AISI 316 stainless steel 19/49/133 wire ropes. Featuring the Danish System for fast installation by inserting the wire rope into the terminal body, these fittings are available for 3 mm to 10 mm wire ropes with M6 to M16 right-hand metric threads and breaking loads of up to 8,300 kg, depending on the model.
- Description
- Ask a Question
-
Osculati AISI 316 Danish System Threaded Terminals with Right-Hand Metric Thread for 3–10 mm Wire Rope
The Osculati AISI 316 Danish System Threaded Terminals are designed for terminating stainless steel wire ropes and connecting them directly to tensioners with right-hand metric threads. The Danish System enables fast and simple installation by inserting the wire rope into the terminal body before completing the assembly.
Manufactured for use with AISI 316 stainless steel 19/49/133 wire ropes, these threaded terminals are available for cable diameters from 3 mm to 10 mm. Depending on the version, they feature M6 to M16 right-hand metric threads and offer breaking loads of up to 8,300 kg.
Key Features
- Designed for installation into tensioners with right-hand metric threads.
- Danish System for quick and simple wire rope installation.
- Compatible with AISI 316 stainless steel 19/49/133 wire ropes.
- Available with M6 to M16 right-hand metric threads.
- Suitable for wire rope diameters from 3 mm to 10 mm.
- Breaking loads up to 8,300 kg depending on the version.
- Corrosion-resistant construction for marine rigging applications.
Available Versions
Osculati Code Wire Rope Diameter L3 D1 Right-Hand Thread Breaking Load 05.004.06 3 mm 47 mm 3 mm M6 700 kg 05.004.08 4 mm 57 mm 4 mm M8 1,500 kg 05.004.10 5 mm 63 mm 5 mm M10 2,180 kg 05.004.12 6 mm 80 mm 6 mm M12 3,700 kg 05.004.14 8 mm 89 mm 8 mm M14 5,600 kg 05.004.16 10 mm 100 mm 10 mm M16 8,300 kg
Technical Specifications
Specification Details Brand Osculati Material AISI 316 Stainless Steel Product Type Danish System Threaded Terminal Compatible Wire Rope AISI 316 Stainless Steel 19/49/133 Construction Suitable Wire Rope Diameter 3–10 mm (depending on version) Thread Type Right-Hand Metric Thread (M6–M16 depending on version) Installation System Danish System Maximum Breaking Load Up to 8,300 kg (depending on version)
Applications
- Standing rigging assemblies.
- Connection to rigging tensioners.
- Marine wire rope terminations.
- Shrouds and forestays.
- Sailboat rigging maintenance and replacement.
-
