The Harken CLR1200ETC24H offers an unmatched power-to-size ratio in a retractable, flush-mounted mooring winch. Its innovative drum design and integrated LED lights provide superior performance and visibility, making it an ideal choice for yachts that need efficient and reliable mooring solutions with reduced reliance on engine and thruster power.
- Description
- Ask a Question
-

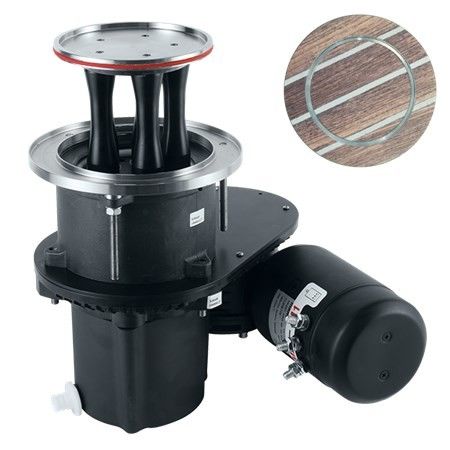

Harken CLR1200ETC24H - 1200 CLR Custom Top Electric Mooring Winch - 24V Horizontal
The CLR1200ETC24H offers an unmatched power-to-size ratio in a retractable, flush-mounted mooring winch. Its fully stowable design takes up 40% less horizontal and less than 50% of the vertical space compared to previous models. Weighing only 17.3 kg (38.1 lb), it provides mechanical advantages similar to much heavier alternatives. Its compact dimensions allow installation of two winches at stern quarters and one at the bow, reducing reliance on engine and thruster power while easing stern-to-dock mooring for yachts 18.3 - 27.4 m (60 - 90 ft) in length.
- Type: Electric horizontal 24V
- Power: 2000 W
- Boat length: 18.3 - 27.4 m (60 - 90 ft)
- Weight: 17.3 kg (38.1 lb)
- Minimum line Ø: 12 mm (1/2 in)
- Maximum line Ø: 18 mm (11/16 in)
- Maximum line speed: 15 m/min (49.2 ft/min)
- Maximum holding load: 1200 kg (2640 lb)
- Maximum pulling load: 600 kg (1320 lb)

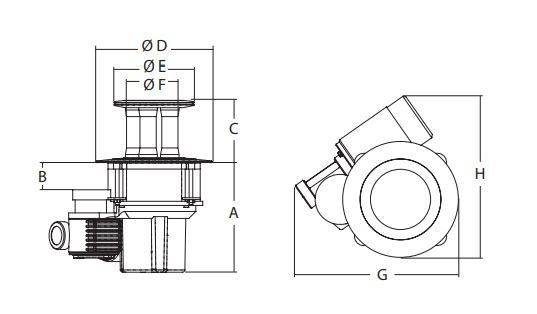

- Dimensions:
- A: 237 mm (9 5/16 in)
- B minimum: 15 mm (5/8 in)
- B maximum: 55 mm (2 5/32 in)
- C: 135 mm (5 5/16 in)
- D: 250 mm (9 27/32 in)
- E: 174 mm (6 27/32 in)
- F: 119 mm (4 11/16 in)
- G: 346 mm (13 5/8 in)
- H: 350 mm (13 25/32 in)
- Special features: Five aluminum columns rotate together around a central axis to form a lightweight drum, providing superior line-holding power and low-speed torque. Integrated LED lights illuminate each column for safe low-light mooring.
- Item number: HKWCLR1200ETC24H
-
