ID
1299978
$ 15,847.48
1-2 weeks delivery time
-
+
The Harken CLR1200HTC redefines retractable, flush-mounted winches with an exceptional power-to-size ratio. Its innovative drum design and integrated LED lights provide superior performance and visibility, making it an ideal choice for luxury yachts that need efficient and reliable mooring solutions with reduced reliance on mechanical propulsion.
- Description
- Ask a Question
-

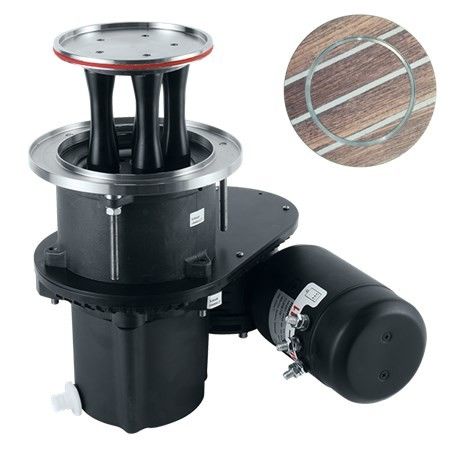

Harken CLR1200HTC - 1200 CLR Hydraulic Top Custom Mooring Winch
The Harken CLR1200HTC redefines retractable, flush-mounted winches with an exceptional power-to-size ratio. Designed to stow entirely below deck, it occupies 40% less horizontal and under 50% of the vertical space compared to older models. Weighing just 21.2 kg (46.7 lb), it delivers mechanical advantage similar to much heavier winches, enabling efficient mooring without extra engine or thruster power. Ideal for boats between 18.3 m and 27.4 m (60 - 90 ft), its compact design allows installation of multiple units for optimal handling.
- Available power: Hydraulic
- Boat length: 18.3 - 27.4 m / 60 - 90 ft
- Weight: 21.2 kg / 46.7 lb
- Minimum line diameter: 12 mm / 1/2 in
- Maximum line diameter: 18 mm / 11/16 in
- Maximum line speed: 15 m/min / 49.2 ft/min
- Maximum holding load: 1200 kg / 2640 lb
- Maximum pulling load: 600 kg / 1320 lb

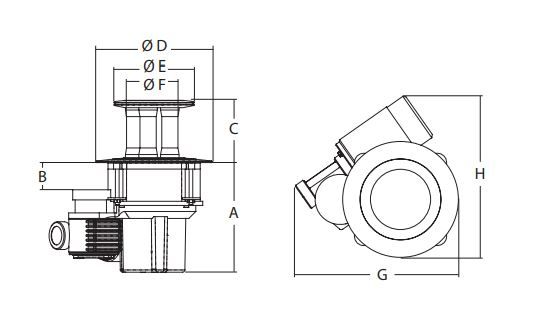

- Dimensions:
- A: 237 mm / 9 5/16 in
- B minimum: 15 mm / 5/8 in
- B maximum: 55 mm / 2 5/32 in
- C: 135 mm / 5 5/16 in
- D: 250 mm / 9 27/32 in
- E: 174 mm / 6 27/32 in
- F: 119 mm / 4 11/16 in
- G: 346 mm / 13 5/8 in
- H: 350 mm / 13 25/32 in
- Item number: HKWCLR1200HTC
The winch drum is engineered with five rotating aluminum columns around a central axis, producing a lightweight drum that generates superior line-holding power and low-speed torque. Integrated LED lights illuminate each column, assisting in precise mooring even in low-light conditions. The CLR1200HTC can significantly reduce reliance on mechanical propulsion when mooring stern-to-dock, making it an ideal solution for luxury yachts.
-
