Clamcleat CL823 is a polypropylene tapered pad designed to improve rope and cleating alignment for a range of Micros cleats. It can be installed either way round or stacked, with two pads creating a 20° angle or forming a riser block of approximately 10 mm. The backplate also provides under-deck reinforcement when the cleat is bolted through thin sections.
- Description
- Ask a Question
-
Clamcleat CL823 Tapered Pad for Micros Cleats, 10° / 20° Angle

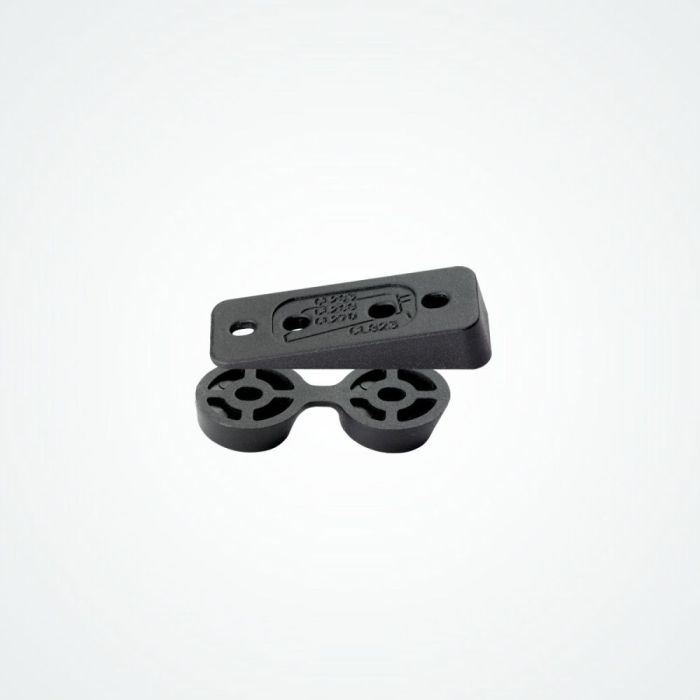

Clamcleat CL823 is a tapered mounting pad designed to improve rope and cleating alignment for compatible Micros cleats.

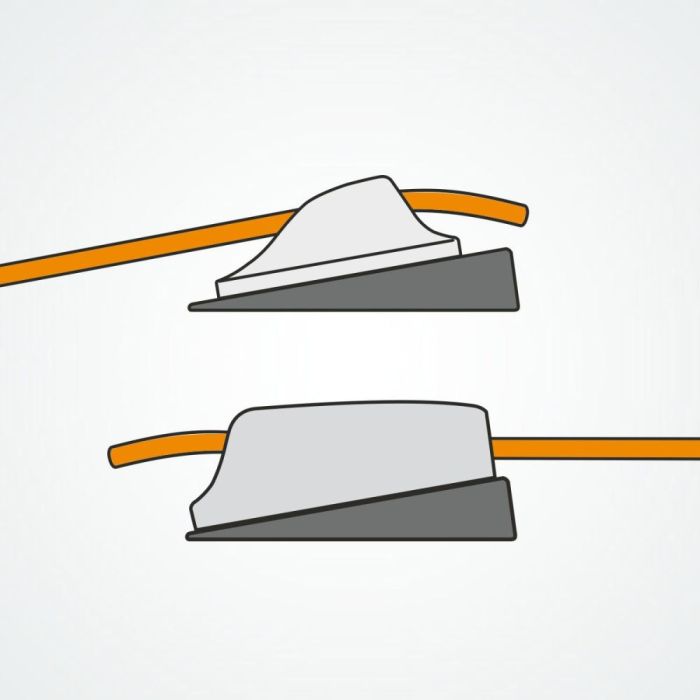

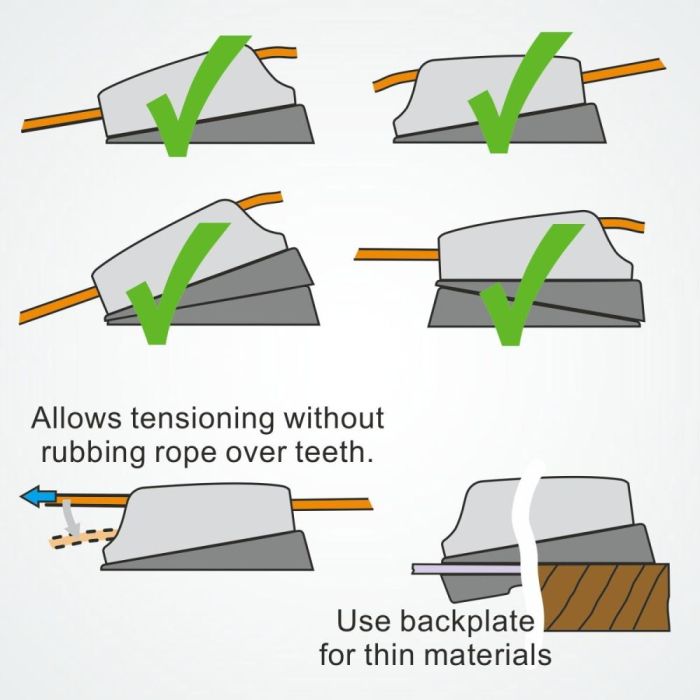

The pad can be installed either way round depending on the required rope angle. Two pads can be stacked in the same direction to angle the cleat by 20°, or arranged to create a riser block that raises the cleat by approximately 10 mm.
The integrated backplate can also provide under-deck reinforcement when mounting through thin sections.
CL823 is compatible with a wide range of Clamcleat Micros models, including nylon and aluminium versions with standard, open and side-entry configurations.
Product Features
- Brand: Clamcleat
- Model: CL823
- Product type: Tapered mounting pad / backplate
- Material: Polypropylene
- Designed to improve rope and cleating alignment
- Can be installed either way round
- Two pads can be stacked for a 20° angle
- Can be configured as an approximately 10 mm riser block
- Provides under-deck reinforcement when bolting through thin sections
- Compatible with multiple Clamcleat Micros cleats
Technical Specifications

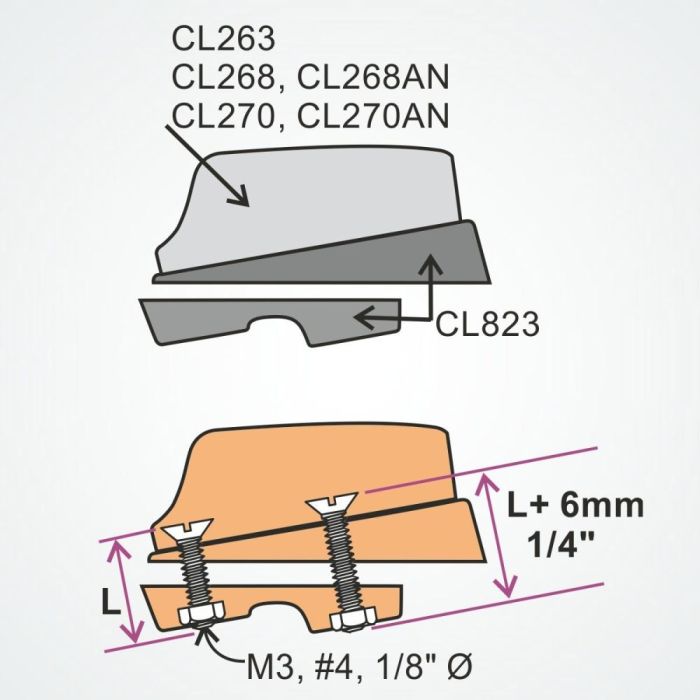

Parameter Specification Model CL823 Product Type Tapered mounting pad / backplate Material Polypropylene Hole Centres 24 mm Length 47 mm Width 18 mm Height 9 mm Double-Stack Angle 20° Riser Height Approx. 10 mm Bolt Size M3 Screw Size 3 mm / No. 4 Weight Approx. 4 g
Compatible Cleats
- CL263 Nylon Micros

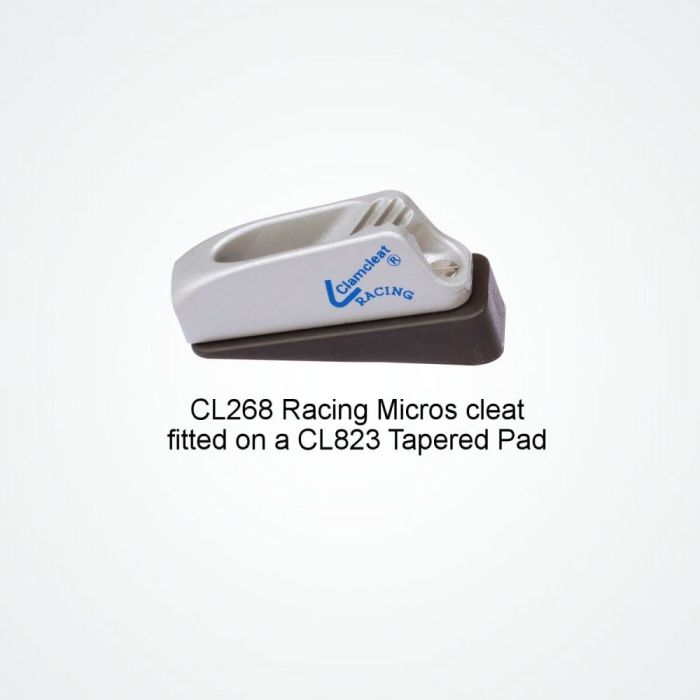

- CL268 / CL268AN Aluminium Racing Micros
- CL270 / CL270AN Aluminium Racing Micros with becket
- CL274 Nylon Open Micros
- CL275 / CL275AN Aluminium Racing Open Micros
- CL277 / CL277AN Aluminium Racing Micros, Starboard
- CL278 / CL278AN Aluminium Racing Micros, Port
-
