ID
1394965
$ 12.70
1-2 weeks delivery time
Color:
- Silver
- Hard Anodised
Item:
- Standard
- Back Plate
- Back Plate + Rivets
Clamcleat CL259 Racing Fine Line cleats are low-profile aluminium cleats designed for 3–6 mm (1/8–1/4") ropes and port-style applications. Their tooth profile provides quick, positive locking with smooth release, making them suitable for leech line adjustment, dinghy deck use, rudder downhauls and industrial blinds. The range is available with silver stove-enamel or hard-anodised finishes, with variants supplied as the cleat only, with a backplate, or as a complete cleat + backplate + rivet kit.
- Description
- Ask a Question
-
Clamcleat CL259 Racing Fine Line Port Cleats for 3–6 mm Rope, Silver or Hard Anodised, with Optional Backplate / Rivets

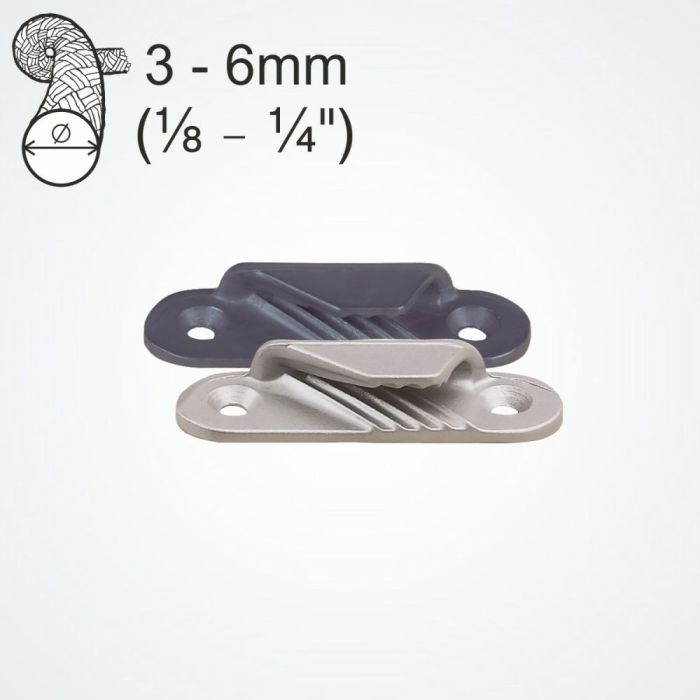

Clamcleat CL259 Racing Fine Line is a low-profile aluminium cleat designed for ropes from 3 to 6 mm (1/8–1/4").
The tooth design provides quick, positive rope locking while allowing smooth release. Its compact profile is suitable for high-load control applications and installations where low bulk is important.
The CL259 is commonly used for leech line adjustment on larger sails and is typically fitted on the starboard side for this application. It can also be used as a low-profile deck cleat on dinghies, for rudder downhauls and in industrial blind systems.
The cleat can be mounted in two positions and can be sewn or riveted onto sails and technical fabrics. When riveting to fabric, a matching backplate is recommended to help prevent rivet pull-through.
The range includes silver stove-enamel and hard-anodised versions, with selected variants supplied with a backplate or with both backplate and rivets.
Product Features
- Brand: Clamcleat
- Series: Racing Fine Line
- Model family: CL259
- Product type: Low-profile aluminium rope cleat
- Rope diameter: 3–6 mm (1/8–1/4")
- Quick, positive rope locking
- Smooth rope release
- Designed for high-load control applications
- Can be mounted in two positions
- Can be sewn or riveted onto sails
- Suitable for leech line adjustment
- Suitable for dinghy deck cleating and rudder downhauls
- Suitable for industrial blind systems
- Silver stove-enamel and hard-anodised finish options
- Backplate versions available for reinforced mounting
Technical Specifications
Parameter Specification Rope Diameter 3–6 mm (1/8–1/4") Material Aluminium Hole Centres 49 mm Length 70 mm Width 21 mm Height 14 mm Bolt Size M4 Screw Size 4.2 mm / No. 8 Weight Approx. 19 g
Available Variants
Model Finish Included Rope Diameter CL259 Silver stove enamel Cleat 3–6 mm CL259+P Silver stove enamel Cleat + backplate 3–6 mm CL259+PR Silver stove enamel Cleat + backplate + rivets 3–6 mm CL259AN Hard anodised Cleat 3–6 mm CL259AN+P Hard anodised Cleat + backplate 3–6 mm
Installation Notes
- Use a backplate when riveting to fabric to help prevent rivet pull-through.
- For carbon fibre sails, avoid direct aluminium-to-carbon contact to help prevent corrosion.
-
