Clamcleat CL258 Racing Fine Line cleats are low-profile aluminium cleats designed for 3–6 mm (1/8–1/4") ropes and high-load control applications. The tooth profile provides quick, positive locking with easy release, making the range suitable for leech line adjustment on larger sails, dinghy deck use and industrial blinds. Available in silver stove-enamel or hard-anodised finishes, with versions supplied as the cleat only, with a backplate, or as a complete cleat + backplate + rivet kit.
- Description
- Ask a Question
-
Clamcleat CL258 Racing Fine Line Starboard Cleats for 3–6 mm Rope, Silver or Hard Anodised, with Optional Backplate / Rivets

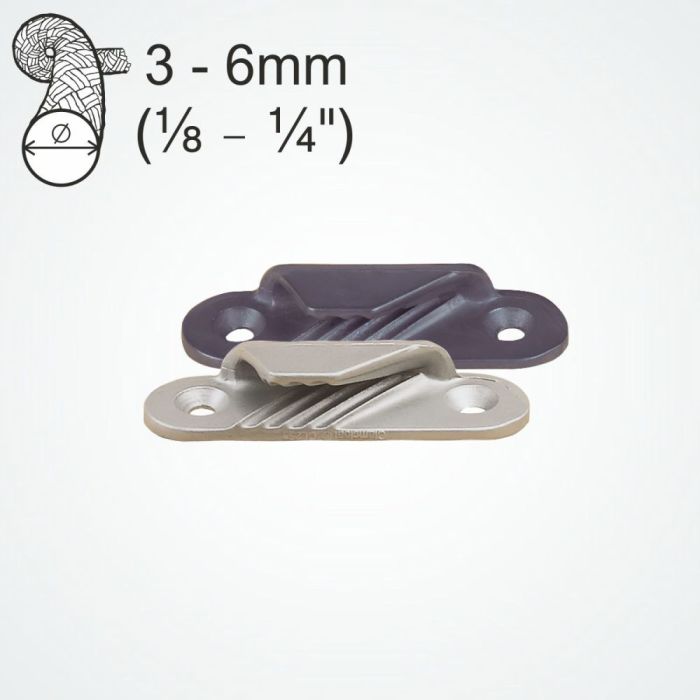

Clamcleat CL258 Racing Fine Line is a low-profile aluminium cleat designed for ropes from 3 to 6 mm (1/8–1/4") and applications where compact size and secure rope holding are required.
The tooth design provides quick, positive rope locking while allowing smooth release. The cleat can be mounted in two positions and can also be sewn or riveted onto sails or technical fabrics.
CL258 is commonly used for leech line adjustment on larger sails and can also be used as a low-profile deck cleat on dinghies or in industrial blind systems. When riveting to fabric, a backplate is recommended to help prevent rivet pull-through.
The range is available with either a silver stove-enamel finish or a hard-anodised finish. Selected variants are supplied with a matching backplate or with both backplate and rivets for complete installation.
Product Features
- Brand: Clamcleat
- Series: Racing Fine Line
- Orientation: Starboard
- Product type: Low-profile aluminium rope cleat
- Rope diameter: 3–6 mm (1/8–1/4")
- Quick, positive rope locking
- Smooth rope release
- Designed for high-load control applications
- Can be mounted in two positions
- Can be sewn or riveted onto sails and technical fabrics
- Suitable for leech line adjustment on larger sails
- Suitable for dinghy deck and industrial blind applications
- Silver stove-enamel and hard-anodised finish options
- Backplate versions available for reinforced fabric mounting
Technical Specifications
Parameter Specification Rope Diameter 3–6 mm (1/8–1/4") Material Aluminium Hole Centres 49 mm Length 70 mm Width 21 mm Height 14 mm Bolt Size M4 Screw Size 4.2 mm / No. 8 Weight Approx. 19 g
Available Variants
Model Finish Included Rope Diameter CL258 Silver stove enamel Cleat 3–6 mm CL258+P Silver stove enamel Cleat + backplate 3–6 mm CL258+PR Silver stove enamel Cleat + backplate + rivets 3–6 mm CL258AN Hard anodised Cleat 3–6 mm CL258AN+P Hard anodised Cleat + backplate 3–6 mm
Installation Notes
- Use a backplate when riveting to fabric to help prevent rivet pull-through.
- Avoid direct contact between aluminium cleats and carbon fibre sails unless suitable isolation is used to help prevent corrosion.
-
