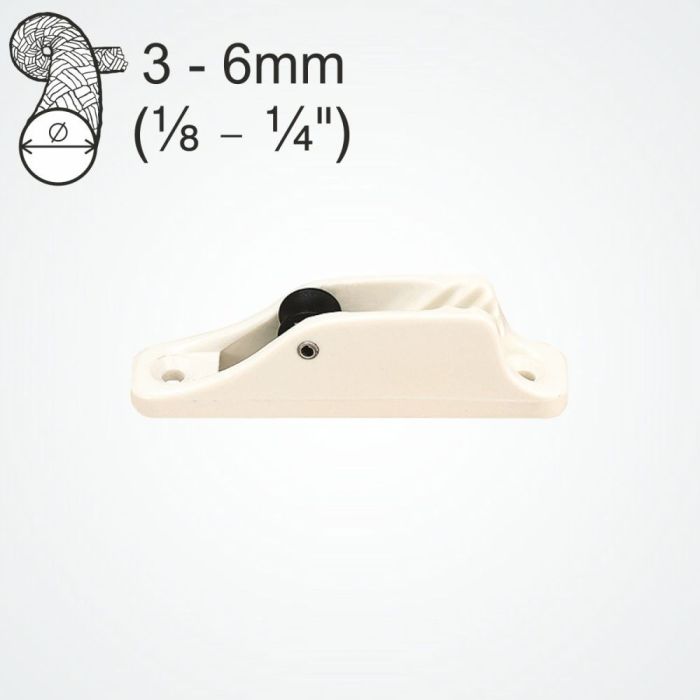

Clamcleat CL203/S1 Junior Cleats with Top Roller Fairlead for 3–6 mm Rope

ID 1394973

$ 8.78

1-2 weeks delivery time

Color:

Black
White

Clamcleat CL203/S1 Junior cleats are compact nylon rope cleats with an integrated top roller fairlead for 3–6 mm (1/8–1/4") rope. The roller allows the line to enter smoothly from above, improving rope guidance and reducing friction. Suitable for lower-load applications such as sun sails and other installations with an elevated rope approach. Available in black CL203/S1 and white CL203W/S1 versions.

Description
Ask a Question

Clamcleat CL203/S1 Junior Cleats with Top Roller Fairlead for 3–6 mm Rope, Black or White Nylon

Clamcleat CL203/S1 is a compact Junior nylon cleat fitted with an integrated top roller fairlead and designed for ropes from 3 to 6 mm (1/8–1/4").

The roller fairlead allows the rope to enter the cleat smoothly from above, improving line guidance and reducing friction before the rope engages with the cleat teeth.

The CL203/S1 series is intended primarily for lower-load rope-control applications, including sun sails and other installations where the rope approaches the cleat from above.

Two colour variants are available: CL203/S1 in black nylon and CL203W/S1 in white nylon.

Product Features

Brand: Clamcleat
Series: Junior
Models: CL203/S1 and CL203W/S1
Product type: Nylon rope cleat with top roller fairlead
Material: Nylon
Rope diameter: 3–6 mm (1/8–1/4")
Integrated roller fairlead
Allows rope entry from above
Improves rope guidance into the cleat
Designed for lower-load applications
Suitable for sun sails
Available in black or white

Technical Specifications

Parameter	Specification
Rope Diameter	3–6 mm (1/8–1/4")
Material	Nylon
Hole Centres	66 mm
Length	82 mm
Width	18 mm
Height	23 mm
Bolt Size	M4
Screw Size	4.2 mm / No. 8
Weight	Approx. 17 g
Rope Entry	From above via top roller fairlead

Available Variants

Model	Colour	Rope Diameter
CL203/S1	Black	3–6 mm
CL203W/S1	White	3–6 mm
