Clamcleat CL230 Racing Junior Mk1 Cleats with Bottom Roller for 3–6 mm Rope

ID 1395065

$ 17.89

1-2 weeks delivery time

Color:

Silver
Hard Anodised

Clamcleat CL230 Racing Junior Mk1 cleats combine an aluminium body with a nylon bottom roller for 3–6 mm (1/8–1/4") rope. The roller allows the line to enter the cleat from below, making the design suitable for through-deck and through-mast installations, Cunningham and kicker controls, trapeze systems and sunshade tensioning. The cleat can also be rigged directly on a rope for 1:1 or 2:1 systems. Available in silver stove-enamel and hard-anodised finishes.

Description
Ask a Question

Clamcleat CL230 Racing Junior Mk1 Cleats with Bottom Roller for 3–6 mm Rope, Silver or Hard Anodised

Clamcleat CL230 Racing Junior Mk1 is an aluminium and nylon rope cleat with an integrated bottom roller, designed for ropes from 3 to 6 mm (1/8–1/4").

The bottom roller allows the rope to enter the cleat from below, making the CL230 particularly suitable for through-deck and through-mast installations.

The cleat can also be rigged directly onto a rope for either 1:1 or 2:1 systems. Typical sailing applications include Cunningham and kicker controls, trapeze adjustment and other control-line systems. It can also be used for tensioning sunshades and similar installations.

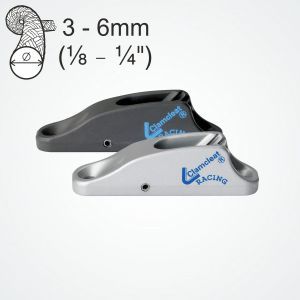

The range is available in two finishes: CL230 with a silver stove-enamel finish and CL230AN with a hard-anodised finish for a harder-wearing surface.

Product Features

Brand: Clamcleat
Series: Racing Junior Mk1 with Bottom Roller
Models: CL230 and CL230AN
Product type: Rope cleat with bottom roller
Material: Aluminium and nylon
Rope diameter: 3–6 mm (1/8–1/4")
Bottom roller allows rope entry from below
Suitable for through-deck installations
Suitable for through-mast installations
Can be rigged directly on a rope
Suitable for 1:1 or 2:1 rigging
Suitable for Cunningham and kicker controls
Suitable for trapeze adjustment
Suitable for sunshade tensioning
Available in silver stove-enamel or hard-anodised finish

Technical Specifications

Parameter	Specification
Rope Diameter	3–6 mm (1/8–1/4")
Material	Aluminium & Nylon
Hole Centres	66 mm
Length	82 mm
Width	18 mm
Height	23 mm
Bolt Size	M5
Screw Size	4.8 mm / No. 10
Weight	Approx. 35 g
Rope Entry	From below via bottom roller

Available Variants

Model	Finish	Rope Diameter
CL230	Silver stove enamel	3–6 mm
CL230AN	Hard anodised	3–6 mm

Compatible Accessories

CL824 Riser Pad – raises the cleat to provide rope clearance
PT230SSE Rope Guide – assists rope release
PTLINK – alternative rope-release link
CL834 Handle – can be fitted for trapeze adjustment with 4–5 mm rope
