Clamcleat CL241 Racing Sail Line cleats are low-profile aluminium cleats with an integrated fairlead, designed for 3–6 mm (1/8–1/4") ropes. Their tooth profile provides quick, positive locking with easy release, making them suitable for leech and luff line adjustment, reefing points, dinghy deck use and trampoline tensioning. The range is available with silver stove-enamel or hard-anodised finishes, with variants supplied as the cleat only, with a backplate, or with backplate and rivets.
- Description
- Ask a Question
-
Clamcleat CL241 Racing Sail Line Port Cleats for 3–6 mm Rope, Silver or Hard Anodised, with Optional Backplate / Rivets

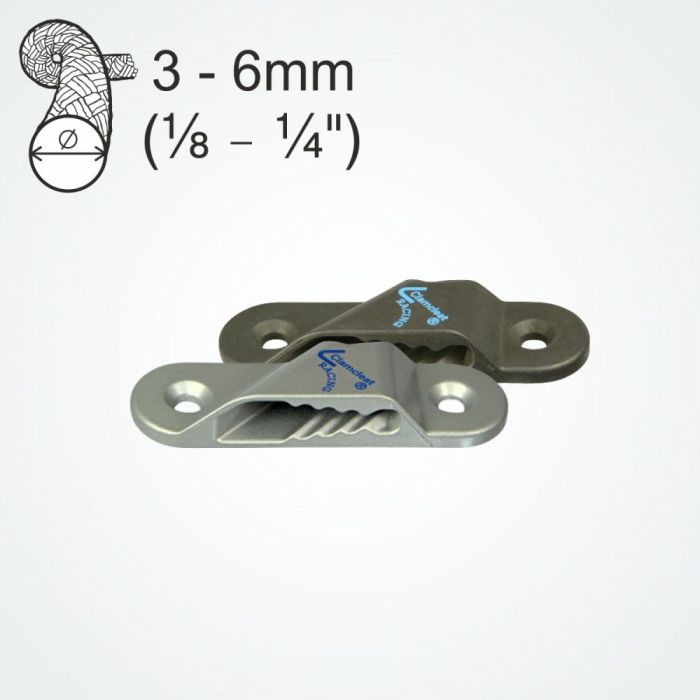

Clamcleat CL241 Racing Sail Line is a low-profile aluminium cleat with an integrated fairlead, designed for ropes from 3 to 6 mm (1/8–1/4").
The tooth design provides a quick, positive lock while allowing easy rope release. Its compact profile and high load-holding capability make it suitable for tensioning leech lines on larger sails and luff lines on smaller sails.
The integrated rope guide also makes the cleat suitable for adjusting and securing reefing points. It can additionally be used as a low-profile deck cleat and for tensioning trampolines on dinghies and catamarans.
The CL241 can be mounted in two positions. The range is available with either a silver stove-enamel finish or a hard-anodised finish. Selected variants include a matching backplate or a backplate and rivets for reinforced installation.
Product Features
- Brand: Clamcleat
- Series: Racing Sail Line
- Model family: CL241
- Orientation: Port
- Product type: Aluminium rope cleat with integrated fairlead
- Rope diameter: 3–6 mm (1/8–1/4")
- Quick, positive rope locking
- Easy rope release
- Low-profile design
- High load-holding capability
- Suitable for leech and luff line adjustment
- Suitable for reefing points
- Suitable as a low-profile dinghy deck cleat
- Suitable for trampoline tensioning on dinghies and catamarans
- Can be mounted in two positions
- Silver stove-enamel and hard-anodised finish options
Technical Specifications
Parameter Specification Rope Diameter 3–6 mm (1/8–1/4") Material Aluminium Hole Centres 49 mm Length 70 mm Width 21 mm Height 12 mm Bolt Size M4 Screw Size 4.2 mm / No. 8 Weight Approx. 19 g
Available Variants
Model Finish Included Rope Diameter CL241 Silver stove enamel Cleat 3–6 mm CL241+P Silver stove enamel Cleat + backplate 3–6 mm CL241+PR Silver stove enamel Cleat + backplate + rivets 3–6 mm CL241AN Hard anodised Cleat 3–6 mm CL241AN+P Hard anodised Cleat + backplate 3–6 mm
Installation Notes
- Use a backplate when riveting the cleat to sails or technical fabrics to help prevent rivet pull-through.
- When installing aluminium cleats on carbon fibre sails, avoid direct metal-to-carbon contact to help prevent corrosion.
-
