ID
1360979
$ 55.13
1-2 weeks delivery time
-
+
The Barton T06180 is a 64 mm single fixed eye block from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. It provides durable low-friction performance with a working load of 750 kg and break load of 1500 kg, suitable for ropes up to 16 mm and demanding marine or industrial applications.
- Description
- Ask a Question
-

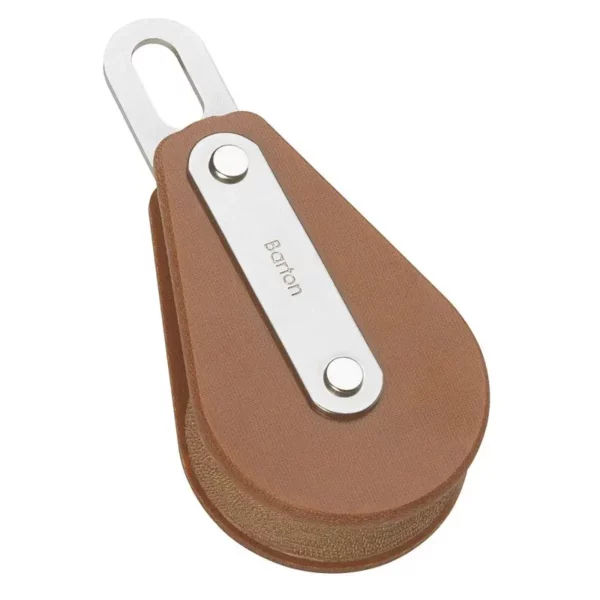

Barton T06180 – TUPHblox Single Fixed Eye Block 64mm, Brass Bearing, Max Rope 16mm
The Barton T06180 TUPHblox Single Fixed Eye Block is part of the heavy-duty TUPHblox range, engineered for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it offers excellent strength, durability, and resistance to harsh environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure structural integrity and corrosion resistance. The fixed eye with elongated slot allows versatile attachment using rope or shackle, making it suitable for a wide range of rigging configurations.
Tufnol construction provides non-conductive properties, making this block ideal for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high load capacity, and excellent resistance to UV exposure and weathering.
Key Features
- 64 mm single sheave block with fixed eye
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Flexible attachment via elongated eye slot
- Designed for high-load applications
Technical Specifications
Part Number T06180 Block Type Single Fixed Eye Block Series TUPHblox Sheave Diameter 64 mm (2 33/64") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 16 mm (5/8") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs)
Applications
- Marine rigging on cruising and working vessels
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- High-load control and guiding systems
- General-purpose heavy-duty line handling
The Barton TUPHblox blocks combine strength, durability, and versatility, delivering reliable performance in demanding marine and industrial environments where safety and longevity are essential.
-
