ID
1360925
$ 19.29
1-2 weeks delivery time
-
+
The Barton T00110 is a 20 mm single bow block from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. It provides durable low-friction performance with a working load of 275 kg and break load of 550 kg, suitable for ropes up to 8 mm and compact marine or industrial applications.
- Description
- Ask a Question
-

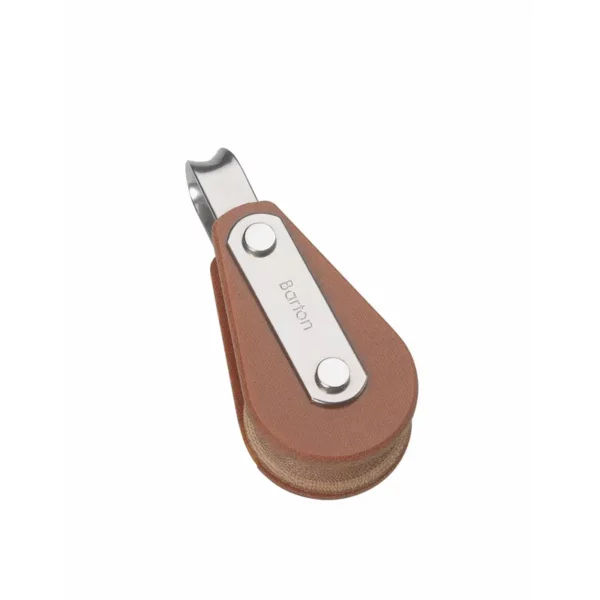

Barton T00110 – TUPHblox Single Bow Block 20mm, Brass Bearing, Max Rope 8mm
The Barton T00110 TUPHblox Single Bow Block is part of the compact and lightweight TUPHblox range, engineered for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it offers excellent strength, durability, and resistance to demanding environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings provide strength and corrosion resistance. The bow fitting allows flexible attachment using rope or shackle, making it ideal for versatile rigging configurations where compact size is essential.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high durability, and excellent resistance to UV and weathering.
Key Features
- 20 mm single sheave block with bow fitting
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Compact and lightweight design
Technical Specifications
Part Number T00110 Block Type Single Bow Block Series TUPHblox Sheave Diameter 20 mm (25/32") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs)
Applications
- Light-duty marine rigging
- Compact control and guiding systems
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- General-purpose line handling
The Barton TUPHblox blocks combine compact design, durability, and versatility, delivering reliable performance in both marine and industrial applications where lightweight strength is essential.
-
