ID
1360946
$ 35.19
1-2 weeks delivery time
-
+
The Barton T02111 is a 35 mm single bow block with becket from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. Weighing 82 g, it provides durable low-friction performance with a working load of 370 kg and break load of 740 kg, suitable for ropes up to 12 mm and systems requiring fixed line termination.
- Description
- Ask a Question
-

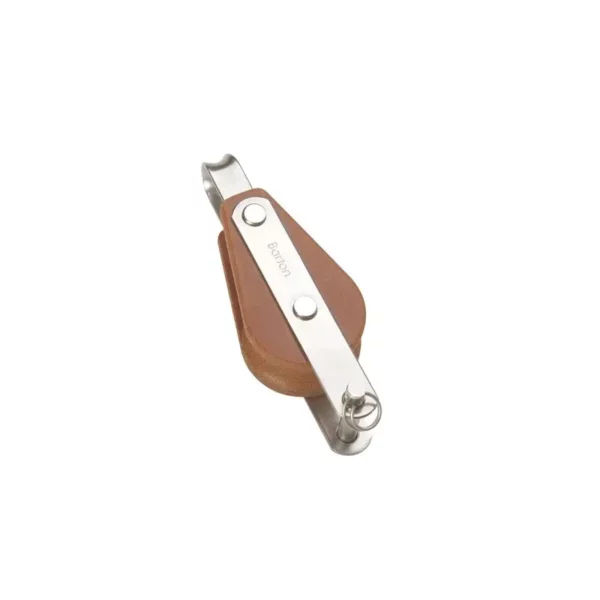

Barton T02111 – TUPHblox Single Bow Block with Becket 35mm, Brass Bearing, Max Rope 12mm
The Barton T02111 TUPHblox Single Bow Block with Becket is part of the durable and lightweight TUPHblox range, engineered for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it delivers excellent strength, durability, and resistance to harsh environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure structural integrity and corrosion resistance. The bow fitting allows flexible attachment using rope or shackle, while the integrated becket enables secure rope termination in compact purchase systems.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high durability, and excellent resistance to UV exposure and weathering.
Key Features
- 35 mm single sheave block with bow fitting and becket
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Becket for fixed line termination
- Lightweight and robust design – 82 g
Technical Specifications
Part Number T02111 Block Type Single Bow Block + Becket Series TUPHblox Sheave Diameter 35 mm (1 3/8") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 12 mm (1/2") Safe Working Load (SWL) 370 kg (815 lbs) Break Load 740 kg (1630 lbs) Weight 82 g
Applications
- Compact purchase systems with fixed termination
- Light-to-medium duty marine rigging
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- General-purpose line handling
The Barton TUPHblox blocks combine compact design, durability, and versatility, delivering reliable performance in demanding marine and industrial environments.
-
