The Barton T01111 is a 30 mm single bow block with becket from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. Weighing 61 g, it provides durable low-friction performance with a working load of 350 kg and break load of 700 kg, suitable for ropes up to 10 mm and systems requiring fixed line termination.
- Description
- Ask a Question
-

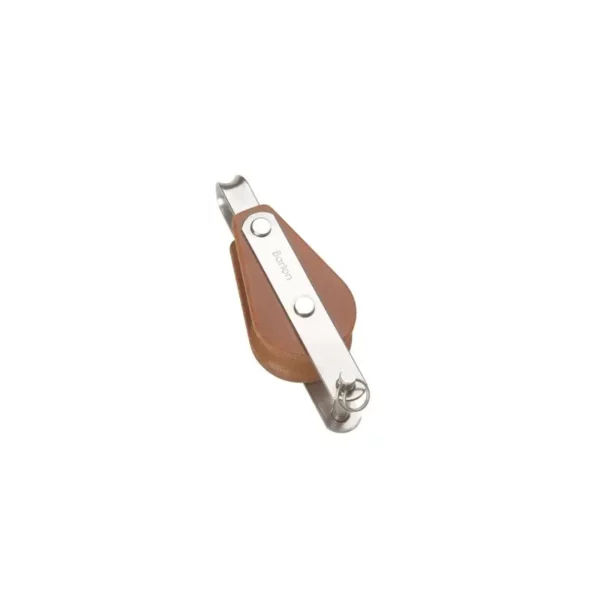

Barton T01111 – TUPHblox Single Bow Block with Becket 30mm, Brass Bearing, Max Rope 10mm
The Barton T01111 TUPHblox Single Bow Block with Becket is part of the compact and durable TUPHblox range, designed for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it delivers excellent strength, durability, and resistance to harsh environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure structural integrity and corrosion resistance. The bow fitting allows flexible attachment using rope or shackle, while the integrated becket enables secure rope termination in compact purchase systems.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high durability, and excellent resistance to UV exposure and weathering.
Key Features
- 30 mm single sheave block with bow fitting and becket
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Becket for fixed line termination
- Lightweight design – 61 g
Technical Specifications
Part Number T01111 Block Type Single Bow Block + Becket Series TUPHblox Sheave Diameter 30 mm (1 3/16") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 10 mm (3/8") Safe Working Load (SWL) 350 kg (771 lbs) Break Load 700 kg (1543 lbs) Weight 61 g
Applications
- Compact purchase systems with fixed termination
- Light-duty marine rigging
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- General-purpose line handling
The Barton TUPHblox blocks combine compact design, durability, and versatility, delivering reliable performance in demanding marine and industrial environments.
-
