The Barton T00111 is a 20 mm single bow block with becket from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. It provides durable low-friction performance with a working load of 275 kg and break load of 550 kg, suitable for ropes up to 8 mm and systems requiring fixed line termination.
- Description
- Ask a Question
-

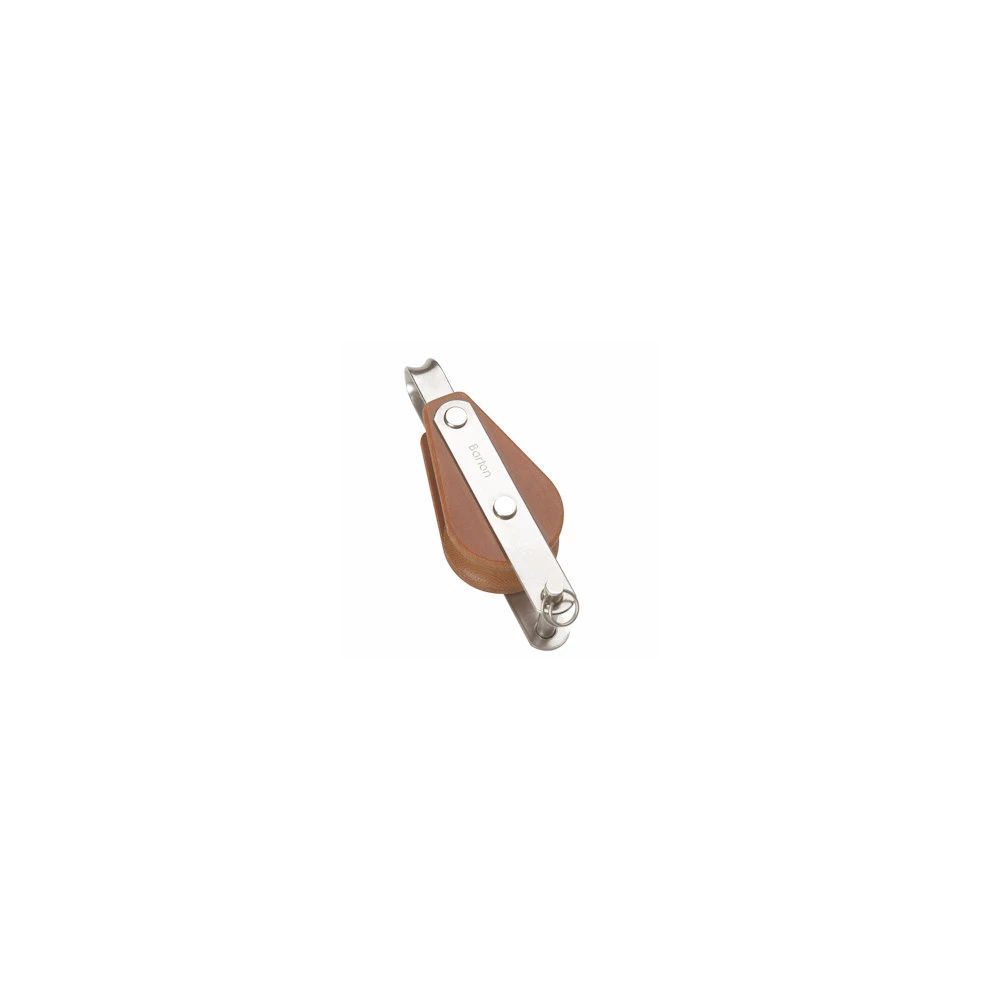

Barton T00111 – TUPHblox Single Bow Block with Becket 20mm, Brass Bearing, Max Rope 8mm
The Barton T00111 TUPHblox Single Bow Block with Becket is part of the compact and durable TUPHblox range, engineered for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it provides excellent strength, durability, and resistance to harsh environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure corrosion resistance and structural integrity. The bow fitting allows flexible attachment using rope or shackle, while the integrated becket enables secure rope termination in compact purchase systems.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high durability, and excellent resistance to UV exposure and weathering.
Key Features
- 20 mm single sheave block with bow fitting and becket
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Becket for fixed line termination
- Compact and lightweight design
Technical Specifications
Part Number T00111 Block Type Single Bow Block + Becket Series TUPHblox Sheave Diameter 20 mm (25/32") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs)
Applications
- Compact purchase systems with fixed termination
- Light-duty marine rigging
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- General-purpose line handling
The Barton TUPHblox blocks combine compact design, durability, and versatility, delivering reliable performance in demanding marine and industrial environments.
-
