ID
1360927
$ 41.45
1-2 weeks delivery time
-
+
The Barton T00130 is a 20 mm single swivel block from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. It provides durable low-friction performance with a working load of 275 kg and break load of 550 kg, suitable for ropes up to 8 mm and applications requiring free rotation under load.
- Description
- Ask a Question
-

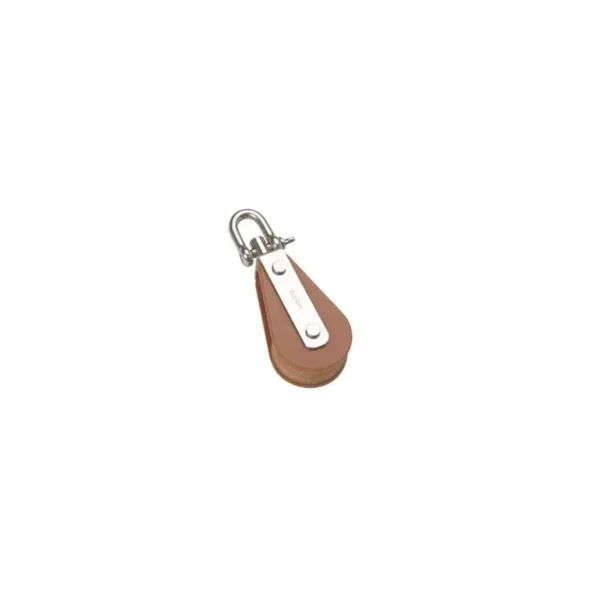

Barton T00130 – TUPHblox Single Swivel Block 20mm, Brass Bearing, Max Rope 8mm
The Barton T00130 TUPHblox Single Swivel Block is part of the compact and durable TUPHblox range, designed for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it delivers excellent strength, durability, and resistance to harsh environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure corrosion resistance and structural integrity. The swivel head allows the block to rotate freely under load, reducing line twist and improving alignment in dynamic rigging systems.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high durability, and excellent resistance to UV exposure and weathering.
Key Features
- 20 mm single sheave block with swivel head
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Swivel for automatic alignment and reduced line twist
- Non-conductive material for industrial applications
- Compact and lightweight design
Technical Specifications
Part Number T00130 Block Type Single Swivel Block Series TUPHblox Sheave Diameter 20 mm (25/32") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 8 mm (5/16") Safe Working Load (SWL) 275 kg (606 lbs) Break Load 550 kg (1210 lbs)
Applications
- Dynamic rigging systems requiring rotation
- Control and trimming systems
- Light-duty marine applications
- Industrial and non-conductive environments
- General-purpose line handling
The Barton TUPHblox blocks combine compact design, durability, and flexibility, delivering reliable performance in applications where smooth rotation and alignment are essential.
-
