The Barton T04110 is a 58 mm single bow block from the TUPHblox range, manufactured from Tufnol phenolic laminate with brass bearings and 316 stainless steel fittings. It provides durable low-friction performance with a working load of 630 kg and break load of 1260 kg, suitable for ropes up to 14 mm and demanding marine or industrial applications.
- Description
- Ask a Question
-

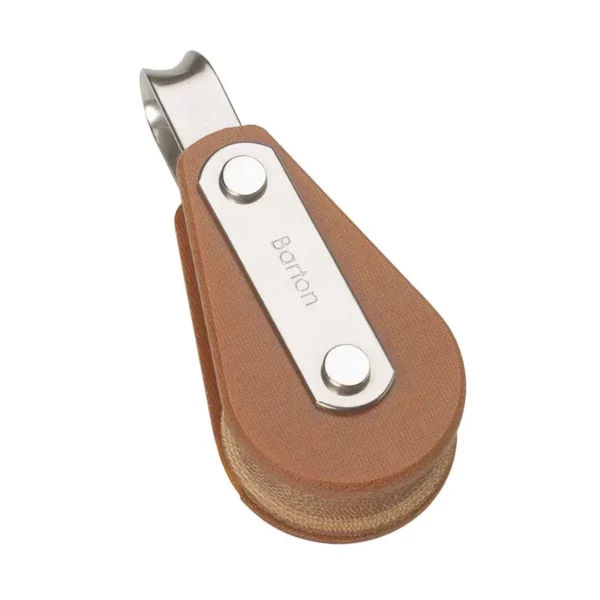

Barton T04110 – TUPHblox Single Bow Block 58mm, Brass Bearing, Max Rope 14mm
The Barton T04110 TUPHblox Single Bow Block is part of the heavy-duty TUPHblox range, engineered for marine, industrial, and specialist environments. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it delivers excellent strength, durability, and resistance to harsh operating conditions.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure structural integrity and corrosion resistance. The bow fitting allows flexible attachment using rope or shackle, making it suitable for a wide range of rigging configurations.
Tufnol construction provides non-conductive properties, making this block ideal for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high load capacity, and excellent resistance to UV exposure and weathering.
Key Features
- 58 mm single sheave block with bow fitting
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Designed for medium to high load applications
Technical Specifications
Part Number T04110 Block Type Single Bow Block Series TUPHblox Sheave Diameter 58 mm (2 9/32") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 14 mm (7/16") Safe Working Load (SWL) 630 kg (1385 lbs) Break Load 1260 kg (2770 lbs)
Applications
- Marine rigging on cruising and working vessels
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- Medium and high-load control systems
- General-purpose line handling
The Barton TUPHblox blocks combine strength, durability, and versatility, delivering reliable performance in demanding marine and industrial environments where safety and longevity are essential.
-
