Barton T06111 – TUPHblox Single Bow Block with Becket 64mm, Brass Bearing, Max Rope 16mm
- Description
- Ask a Question
-

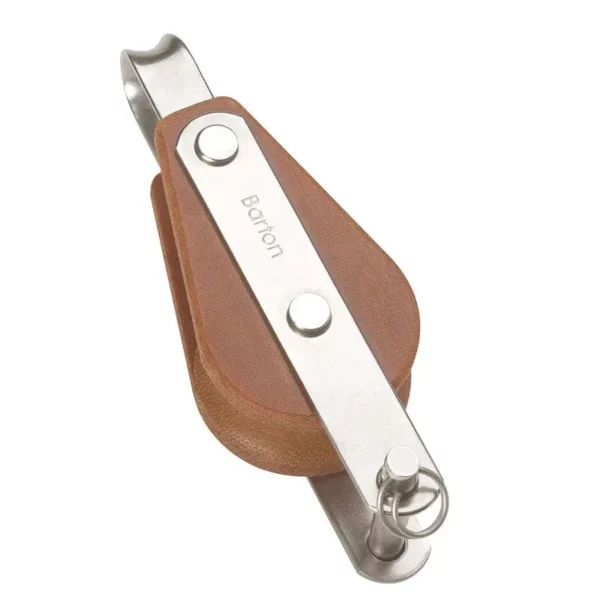

Barton T06111 – TUPHblox Single Bow Block with Becket 64mm, Brass Bearing, Max Rope 16mm
The Barton T06111 TUPHblox Single Bow Block with Becket is part of the heavy-duty TUPHblox range, engineered for marine, industrial, and specialist applications. Manufactured from Tufnol phenolic resin laminate with cotton reinforcement, it delivers excellent strength, durability, and resistance to harsh environments.
The block runs on brass bearings for smooth and reliable operation, while 316 marine grade stainless steel bindings ensure structural integrity and corrosion resistance. The bow fitting allows flexible attachment using rope or shackle, while the integrated becket enables secure rope termination in purchase systems.
Tufnol construction provides non-conductive properties, making this block suitable for industrial environments, including explosive zones and hot air balloon systems. The laminated and heat-compressed structure ensures long service life, high load capacity, and excellent resistance to UV exposure and weathering.
Key Features
- 64 mm single sheave block with bow fitting and becket
- Tufnol laminate construction for strength and durability
- Brass bearing system for smooth operation
- 316 stainless steel fittings for corrosion resistance
- Non-conductive material for industrial applications
- Becket for fixed line termination
- Designed for high-load applications
Technical Specifications
Part Number T06111 Block Type Single Bow Block + Becket Series TUPHblox Sheave Diameter 64 mm (2 33/64") Bearing Type Brass Bearing Material Tufnol laminate with stainless steel and brass components Max Rope Diameter 16 mm (5/8") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs)
Applications
- Purchase systems with fixed rope termination
- Marine rigging on cruising and working vessels
- Industrial and non-conductive environments
- Hot air balloon rigging systems
- High-load control and guiding systems
The Barton TUPHblox blocks combine strength, durability, and versatility, delivering reliable performance in demanding marine and industrial environments where safety and longevity are essential.
-
