ID
1360902
$ 247.64
1-2 weeks delivery time
-
+
The Barton N16631 is a Size 6 fiddle block with swivel, becket and cam, featuring twin inline Ø44 mm and Ø72 mm ball bearing sheaves for ropes up to 14 mm. Weighing 579 g, it delivers smooth low-friction operation with a working load of 1000 kg and break load of 2000 kg, making it ideal for dynamic high-load systems with integrated line control.
- Description
- Ask a Question
-

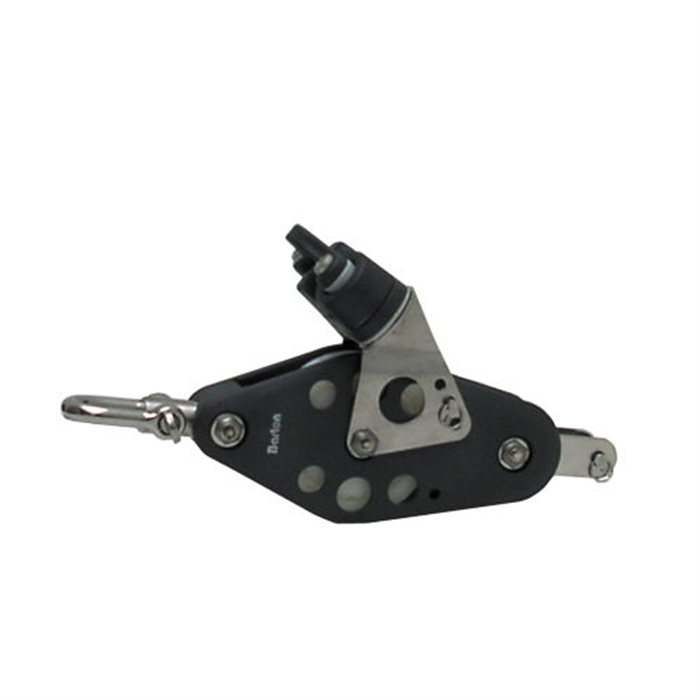

Barton N16631 – Fiddle Block Swivel with Becket and Cam Size 6 64mm, Ball Bearing, Ø44/72mm Sheaves, Max Rope 14mm
The Barton N16631 Fiddle Block with Swivel, Becket and Cam is part of the Size 6 (64 mm) high load cruiser range, engineered for demanding sailing conditions. It features a fiddle configuration with two inline sheaves (44 mm and 72 mm), providing an efficient and compact solution for multi-purchase systems.
Equipped with a ball bearing system, this block ensures smooth, low-friction performance, making it ideal for frequently adjusted control lines. The swivel head allows optimal alignment under varying load directions, while the integrated becket enables secure rope termination. The cam cleat provides fast and reliable line locking, making this block particularly suitable for controlled trimming systems. The construction combines glass fibre reinforced side plates with a 316 stainless steel internal frame for strength, durability, and long service life.
Key Features
- Fiddle block with Ø44 mm and Ø72 mm sheaves
- Ball bearing system for smooth and efficient operation
- Integrated cam cleat for quick and secure line control
- Swivel head for optimal load alignment
- Becket for fixed line termination
- Heavy-duty construction for demanding applications
- Robust design – 579 g
Technical Specifications
Part Number N16631 Block Type Fiddle Block – Swivel + Becket + Cam Size Size 6 (64 mm) Sheave Configuration Fiddle (2 sheaves) Sheave Diameter 44 mm / 72 mm Sheave Size 64 mm x 18 mm (2 1/2" x 45/64") Bearing Type Ball Bearing Max Rope Diameter 14 mm (9/16") Safe Working Load (SWL) 1000 kg (2200 lbs) Break Load 2000 kg (4400 lbs) Max Rolling Load 700 kg (1543 lbs) Weight 579 g Dimensions 235 × 130 × 82 mm
Applications
- Mainsheet and vang systems
- Dynamic trimming and control systems
- High-load purchase systems with integrated locking
- Cruising and racing yachts
The Barton Size 6 ball bearing fiddle blocks with cam are engineered for high-efficiency performance and precise control, delivering smooth operation and reliable load handling in demanding sailing environments.
-
