The Barton N14160 is a Size 4 single cheek block with backing plate, featuring a 58 mm ball bearing sheave for ropes up to 12 mm. Weighing 192 g, it is designed for fixed deck mounting with smooth, low-friction operation and precise line guidance. With a safe working load of 750 kg and break load of 1500 kg, it is ideal for larger cruising and racing yachts and compatible with mainsheet traveller systems.
- Description
- Ask a Question
-

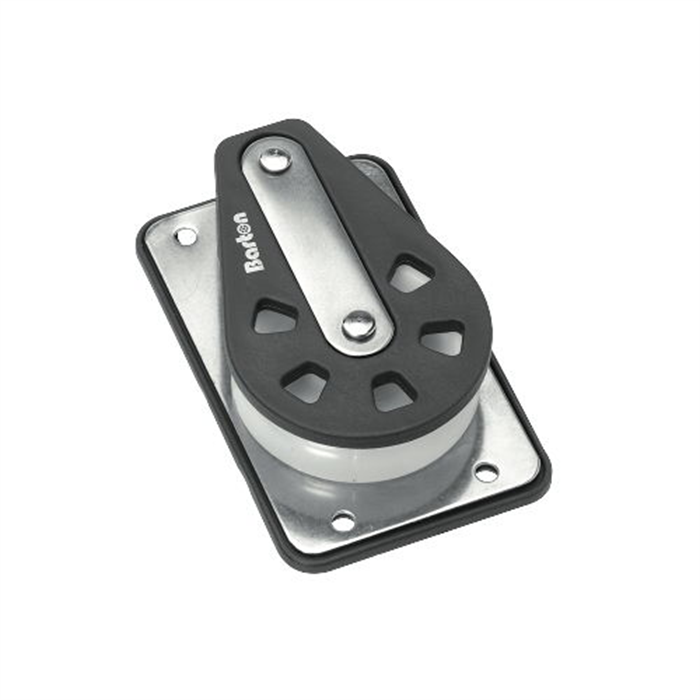

Barton N14160 - Single Cheek Block with Backing Plate Size 4 58mm – Ball Bearing, Ø58mm Sheave, Max Rope 12mm
The Barton N14160 Single Cheek Block with Backing Plate is part of the Size 4 (58 mm) range and is designed for fixed deck mounting applications. It features a ball bearing sheave for smooth, low-friction performance, making it ideal for dynamic control systems.
This cheek block is engineered for installation directly onto flat surfaces, providing stable and controlled line routing. The robust construction includes high-grade moulded side plates that are through-bolted and riveted for maximum strength and durability. All load-bearing components and the internal frame are manufactured from marine-grade 316 stainless steel, ensuring excellent corrosion resistance and long-term reliability.
The Size 4 range is developed for larger cruising and racing yachts, offering increased load capacity while maintaining efficient operation. The ball bearing system ensures minimal friction and is particularly suited for applications requiring frequent adjustment and precise trimming.
Key Features
- Single cheek block with backing plate for deck mounting
- Ball bearing sheave for smooth, low-friction operation
- Heavy-duty construction with through-bolted side plates
- Marine-grade 316 stainless steel internal frame
- Optimized for dynamic line control systems
Technical Specifications
Part Number N14160 Block Type Cheek Block with Backing Plate Size Size 4 (58 mm) Sheave Diameter 58 mm x 17 mm (2 5/16" x 5/8") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Max Rolling Load 525 kg (1150 lbs) Weight 192 g Dimensions 107 × 68 × 28 mm Materials High-grade moulded side plates, acetal sheave, marine-grade 316 stainless steel frame and fittings, Delrin ball bearings
Applications
- Deck-mounted control line routing
- Mainsheet traveller systems
- Lead blocks and guide systems
- Cruising and racing yachts up to 10 m and above
The Barton N14160 delivers smooth and efficient performance for fixed-position installations, ensuring precise control and minimal friction in demanding marine environments.
-
