ID
1360856
$ 51.72
1-2 weeks delivery time
-
+
The Barton N15110 is a Size 5 single fixed eye block with a 54 mm ball bearing sheave, designed for ropes up to 12 mm. Weighing 140 g, it delivers smooth low-friction performance with a safe working load of 750 kg and break load of 1500 kg, making it ideal for high-load dynamic systems on cruising and racing yachts.
- Description
- Ask a Question
-

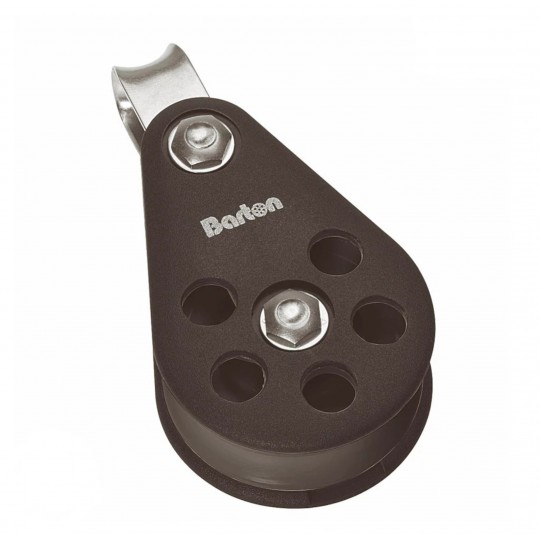

Barton N15110 – Single Fixed Eye Block Size 5 54mm, Ball Bearing, Ø54mm Sheave, Max Rope 12mm
The Barton N15110 Single Fixed Eye Block is part of the robust Size 5 (54 mm) range, engineered for demanding marine applications. Featuring a high-performance ball bearing sheave, this block ensures smooth operation and reduced friction under dynamic loads.
Built with marine-grade 316 stainless steel load components and high-strength moulded side plates, the block is through-bolted and riveted for maximum durability and reliability. The fixed eye attachment provides secure and stable mounting, making it suitable for heavy-duty rigging systems on larger yachts.
Key Features
- Single sheave block with fixed eye attachment
- Ball bearing system for smooth, low-friction performance
- Heavy-duty construction with stainless steel internal frame
- Through-bolted and riveted side plates for enhanced strength
- Optimized for high-load dynamic applications
- Compatible with mainsheet traveller systems
- Lightweight for its class – 140 g
Technical Specifications
Part Number N15110 Block Type Single Fixed Eye Size Size 5 (54 mm) Sheave Diameter 54 mm x 17 mm (2 1/8" x 5/8") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Max Rolling Load 525 kg (1157 lbs) Weight 140 g Dimensions 110 × 58 × 37 mm
Applications
- Mainsheet and traveller systems
- Vang and control line systems
- High-load deck rigging setups
- Cruising and racing yachts
- Heavy-duty sailing applications
The Barton Size 5 ball bearing blocks are designed for maximum strength and smooth performance, providing reliable operation in demanding sailing environments where high loads and frequent adjustments are required.
-
