The Barton N05110 is a Size 5 single fixed eye block featuring a 54 mm plain bearing sheave for ropes up to 12 mm. Weighing 154 g, it is designed for high-load applications with secure and stable mounting. With a safe working load of 750 kg and break load of 1500 kg, it provides reliable performance for cruising and racing yachts up to 10 m.
- Description
- Ask a Question
-

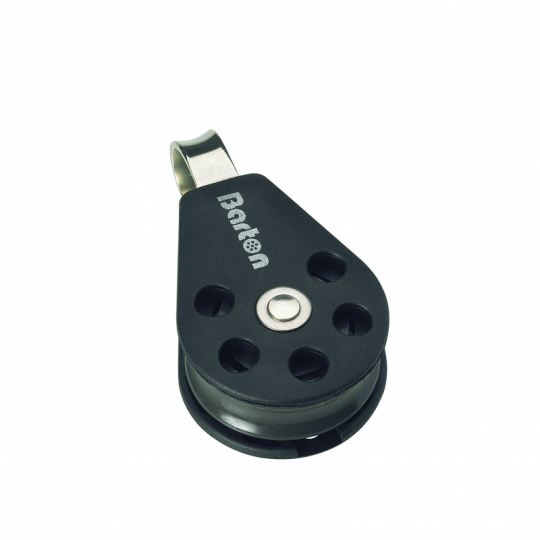

Barton N05110 - Single Fixed Eye Block Size 5 54mm – Plain Bearing, Ø54mm Sheave, Max Rope 12mm
The Barton N05110 Single Fixed Eye Block is part of the Size 5 (54 mm) range and is designed for secure, fixed mounting applications. It features a plain bearing sheave for reliable performance under high loads.
The fixed eye attachment provides a stable and secure connection point, making this block ideal for applications where consistent alignment is required. The robust construction includes high-grade moulded side plates that are through-bolted and riveted for maximum strength and safety.
All load-bearing components and the internal frame are manufactured from marine-grade 316 stainless steel, ensuring excellent corrosion resistance and durability in harsh marine environments. The plain bearing system is optimized for high-load and static applications where strength and longevity are critical.
Key Features
- Single sheave block with fixed eye attachment
- Plain bearing sheave for high-load reliability
- Stable mounting for consistent line alignment
- Heavy-duty construction with through-bolted side plates
- Marine-grade 316 stainless steel internal components
Technical Specifications
Part Number N05110 Block Type Single Fixed Eye Block Size Size 5 (54 mm) Sheave Diameter 54 mm x 17 mm (2 1/8" x 5/8") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Weight 154 g Dimensions 110 × 58 × 37 mm Materials High-grade moulded side plates, acetal sheave, marine-grade 316 stainless steel frame and fittings, brass plain bearing
Applications
- Mainsheet and vang systems
- Halyard and control line routing
- Deck and mast-mounted rigging systems
- Cruising and racing yachts up to 10 m
The Barton N05110 delivers durable and reliable performance for fixed-position rigging systems, ensuring efficient load handling in demanding marine environments.
-
