The Barton N05111 is a Size 5 single fixed eye block with becket and a 54 mm plain bearing sheave, designed for ropes up to 12 mm. Weighing 177 g, it is optimized for high static loads with a safe working load of 750 kg and break load of 1500 kg, making it ideal for heavy-duty rigging systems with fixed rope termination.
- Description
- Ask a Question
-

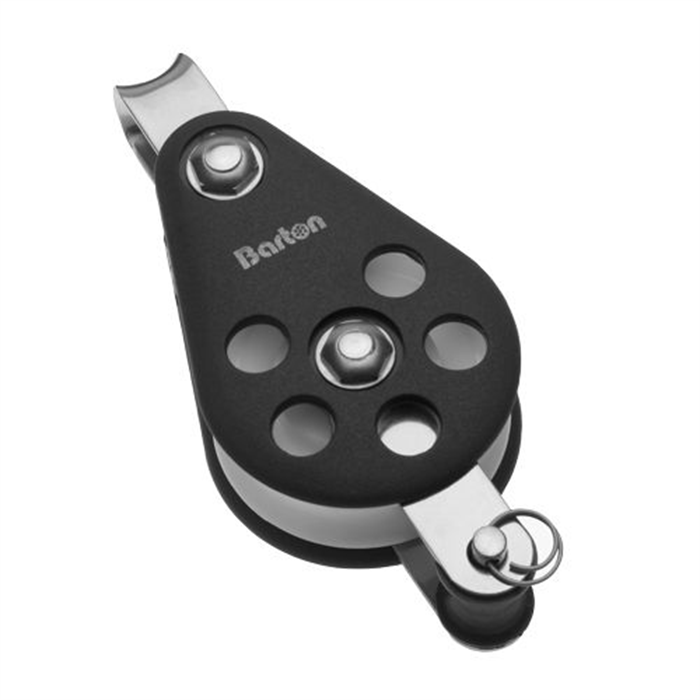

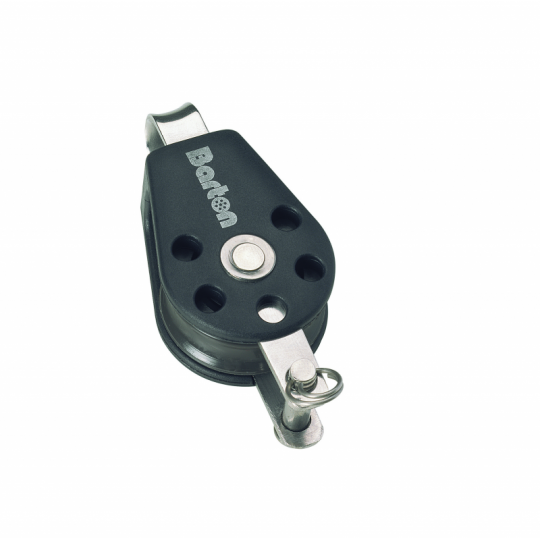

Barton N05111 – Single Fixed Eye Block with Becket Size 5 54mm, Plain Bearing, Ø54mm Sheave, Max Rope 12mm
The Barton N05111 Single Fixed Eye Block with Becket belongs to the heavy-duty Size 5 (54 mm) range, designed for reliable performance in demanding marine environments. The plain bearing sheave is ideal for handling high static loads, ensuring durability and consistent operation under load.
Constructed with marine-grade 316 stainless steel internal components and high-strength moulded side plates, the block is through-bolted and riveted for maximum structural integrity. The integrated becket allows secure rope termination, while the fixed eye provides a stable and secure mounting point.
Key Features
- Single sheave block with integrated becket
- Plain bearing optimized for high load applications
- Fixed eye attachment for secure and stable mounting
- Heavy-duty construction with stainless steel load components
- Through-bolted and riveted side plates for enhanced strength
- Suitable for static and high-load rigging systems
- Compatible with mainsheet traveller systems
- Weight – 177 g
Technical Specifications
Part Number N05111 Block Type Single Fixed Eye + Becket Size Size 5 (54 mm) Sheave Diameter 54 mm x 17 mm (2 1/8" x 5/8") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Weight 177 g Dimensions 132 × 58 × 37 mm
Applications
- Mainsheet and control line systems
- Static load rigging setups
- Vang and kicker systems
- Cruising and racing yachts
- Multi-purchase systems with fixed rope termination
The Barton Size 5 plain bearing blocks are engineered for maximum strength and durability, making them the preferred choice for applications where high loads and reliability are critical. :contentReference[oaicite:0]{index=0}
-
