The Barton N15111 is a Size 5 single fixed eye block with becket and a 54 mm ball bearing sheave, designed for ropes up to 12 mm. Weighing 163 g, it delivers smooth low-friction operation with a safe working load of 750 kg and break load of 1500 kg, making it ideal for dynamic high-load systems with fixed rope termination.
- Description
- Ask a Question
-

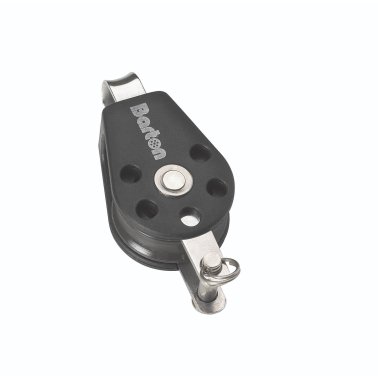

Barton N15111 – Single Fixed Eye Block with Becket Size 5 54mm, Ball Bearing, Ø54mm Sheave, Max Rope 12mm
The Barton N15111 Single Fixed Eye Block with Becket is part of the heavy-duty Size 5 (54 mm) range, engineered for demanding sailing applications. Equipped with a high-performance ball bearing sheave, this block ensures smooth, low-friction operation, ideal for systems requiring frequent adjustment.
Manufactured using marine-grade 316 stainless steel load components and reinforced moulded side plates, the block is through-bolted and riveted for superior strength and durability. The integrated becket allows secure rope termination, while the fixed eye provides stable and reliable attachment in high-load rigging systems.
Key Features
- Single sheave block with integrated becket
- Ball bearing system for smooth, low-friction performance
- Fixed eye attachment for secure mounting
- Heavy-duty construction with stainless steel internal frame
- Through-bolted and riveted side plates for maximum strength
- Designed for dynamic and frequently adjusted systems
- Compatible with mainsheet traveller systems
- Weight – 163 g
Technical Specifications
Part Number N15111 Block Type Single Fixed Eye + Becket Size Size 5 (54 mm) Sheave Diameter 54 mm x 17 mm (2 1/8" x 5/8") Bearing Type Ball Bearing Number of Sheaves Single Max Rope Diameter 12 mm (7/16") Safe Working Load (SWL) 750 kg (1650 lbs) Break Load 1500 kg (3300 lbs) Max Rolling Load 525 kg (1157 lbs) Weight 163 g Dimensions 132 × 58 × 37 mm
Applications
- Mainsheet and traveller systems
- Dynamic control line setups
- Vang and kicker systems
- Cruising and racing yachts
- Multi-purchase systems with fixed rope termination
The Barton Size 5 ball bearing blocks are designed for high efficiency and smooth performance, delivering reliable operation in demanding marine environments where low friction and consistent control are essential. :contentReference[oaicite:0]{index=0}
-
