The Barton N01091 is a Size 1 single block with double tang attachment and becket, featuring a 30 mm plain bearing sheave for ropes up to 8 mm. Weighing 56 g, it provides reliable load handling with a working load of 355 kg and break load of 710 kg, making it suitable for compact purchase systems with secure mounting and rope termination.
- Description
- Ask a Question
-

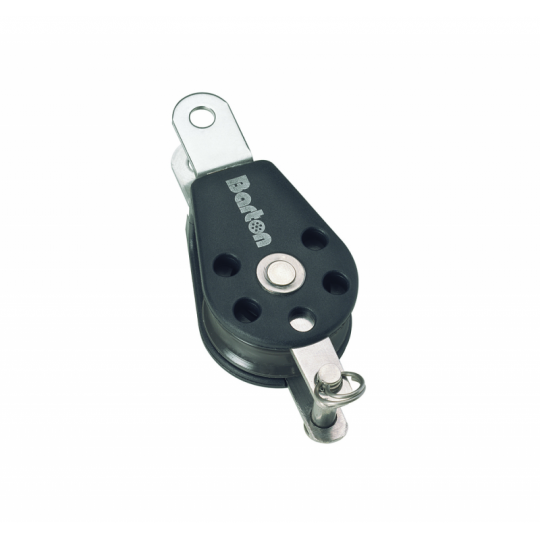

Barton N01091 - Single Double Tang Block with Becket Size 1 30mm – Plain Bearing, Ø30mm Sheave, Max Rope 8mm
The Barton N01091 Single Double Tang Block with Becket is part of the Size 1 (30 mm) range, featuring a plain bearing sheave and an internal steel frame for enhanced strength and durability. The double tang attachment provides a secure and stable fixing point for demanding applications.
The integrated becket allows rope termination for compact purchase systems, while the plain bearing system is optimized for high load capacity and controlled adjustment. This block is suitable for dinghies, dayboats, and a wide range of sailing craft where reliable performance and structural strength are required.
Key Features
- Single sheave block with double tang and integrated becket
- Internal steel frame for increased strength and durability
- Plain bearing system for high load applications
- Secure mounting via double tang attachment
- Lightweight construction – 56 g
Technical Specifications
Part Number N01091 Block Type Single Double Tang + Becket Size Size 1 (30 mm) Sheave Diameter 30 mm x 12 mm (1 3/16"" x 15/32"") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 8 mm (5/16"") Safe Working Load (SWL) 355 kg (782 lbs) Break Load 710 kg (1565 lbs) Weight 56 g Dimensions 81 × 32 × 25 mm
Applications
- Compact purchase systems with rope termination
- Control and trimming systems
- Dinghies and small to medium sailing boats
- General rigging applications requiring secure mounting
The Barton Size 1 plain bearing single blocks with double tang and becket are engineered for high strength and dependable performance, offering durability and versatility across a wide range of sailing applications.
-
