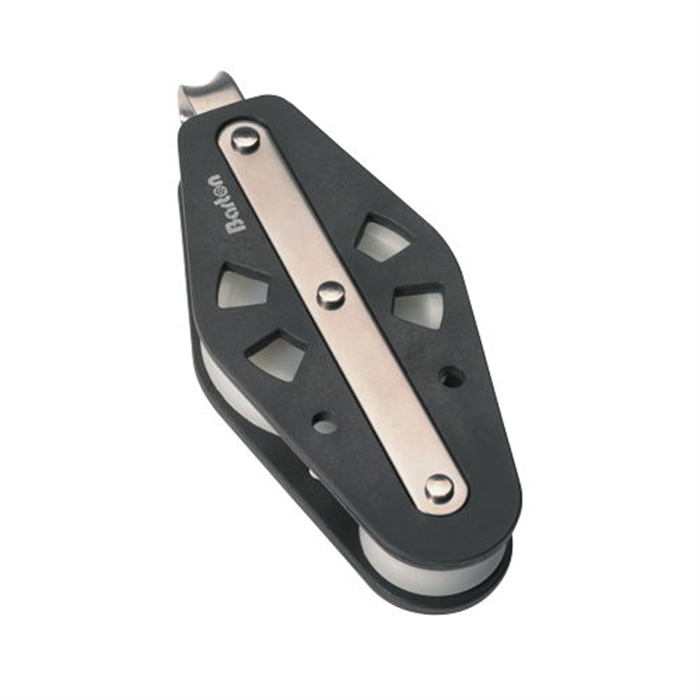

Barton N02410 - Fiddle Block Fixed Eye Size 2 30/45mm – Plain Bearing, Ø30/45mm Sheaves, Max Rope 8mm

ID 1360684

$ 32.24

1-2 weeks delivery time

- +

Add to cart

The Barton N02410 is a Size 2 fiddle block with fixed eye and plain bearing sheaves (30/45 mm), designed for ropes up to 8 mm. Weighing 89 g, it is optimized for high static loads with a safe working load of 370 kg and break load of 740 kg. The compact fiddle configuration enables efficient multi-purchase systems, making it ideal for dinghies, dayboats, and general yacht control applications.

Description
Ask a Question

Barton N02410 - Fiddle Block Fixed Eye Size 2 30/45mm – Plain Bearing, Ø30/45mm Sheaves, Max Rope 8mm

The Barton N02410 Fiddle Block with Fixed Eye is part of the Size 2 (35 mm) block range, designed to deliver high performance and strength in a compact and lightweight form. It features a plain bearing fiddle sheave configuration (30/45 mm), ideal for handling higher static loads with reliability.

Constructed with glass fibre reinforced nylon side plates and an internal stainless steel frame, this block offers excellent durability and structural strength. The fixed eye attachment ensures secure mounting, while the fiddle arrangement allows efficient use in multi-purchase systems such as vangs, downhauls, and control lines.

Key Features

Fiddle block configuration with 30 mm and 45 mm sheaves
Plain bearing sheaves for high load applications
Fixed eye for secure and stable attachment
Compact and lightweight design – 89 g
Suitable for multi-purchase systems and control lines

Technical Specifications

Part Number	N02410
Block Type	Fiddle + Fixed Eye
Size	Size 2 (35 mm)
Sheave Diameter	30 mm / 45 mm
Sheave Size	30/45 × 11 mm (1 3/16" / 1 3/4" × 15/32")
Bearing Type	Plain Bearing
Number of Sheaves	Fiddle (Double)
Max Rope Diameter	8 mm (5/16")
Safe Working Load (SWL)	370 kg (815 lbs)
Break Load	740 kg (1630 lbs)
Weight	89 g
Dimensions	112 × 48 × 25 mm
Materials	Glass fibre reinforced nylon cheeks, Acetal sheaves, stainless steel frame

Applications

Multi-purchase systems (vangs, downhauls, kicking straps)
Control and trimming lines
Dinghies and dayboats
General yacht rigging applications

The Barton Size 2 fiddle blocks are engineered for efficient load distribution and durability, offering reliable performance across a wide range of sailing applications. :contentReference[oaicite:0]{index=0}
