The Barton 90401 is a medium snatch block with stainless steel snap shackle and 48 mm sheave, designed for ropes up to 16 mm. Featuring an easy-open side plate and 316 stainless steel fittings, it allows quick line insertion without reeving. With a working load of 550 kg and break load of 1100 kg, it is ideal for sheet deflection and temporary lead changes on cruising and racing yachts.
- Description
- Ask a Question
-

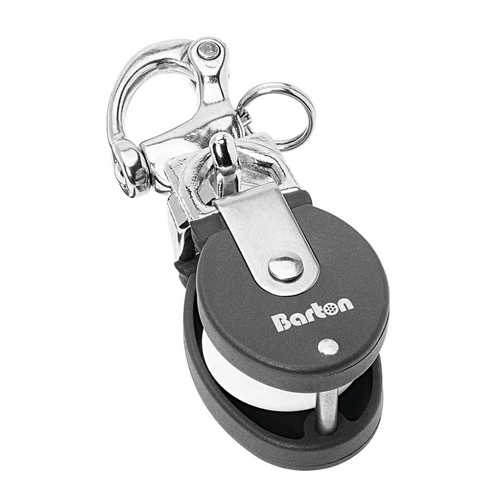

Barton 90401 – Snatch Block with Stainless Steel Snap Shackle 48mm, Plain Bearing, Ø48mm Sheave, Max Rope 16mm
The Barton 90401 Snatch Block is a compact yet powerful single sheave block with stainless steel snap shackle, designed for fast and flexible rigging adjustments. Its opening side plate allows rope insertion without reeving, making it ideal for temporary or rapidly changing setups.
Manufactured with 316 stainless steel components and glass fibre reinforced nylon side plates, this block combines strength, corrosion resistance, and lightweight handling. The snap shackle enables quick positioning anywhere on deck, while maintaining secure attachment under load.
Key Features
- Snatch block with easy-open side plate for quick rope insertion
- Stainless steel snap shackle for rapid attachment and repositioning
- Compact and strong construction
- 316 stainless steel fittings for corrosion resistance
- Glass fibre reinforced side plates for durability
- Plain bearing for reliable performance under load
Technical Specifications
Part Number 90401 Block Type Snatch Block with Snap Shackle Category Snatch Blocks Sheave Diameter 48 mm x 20 mm (1 7/8" x 3/4") Bearing Type Plain Bearing Number of Sheaves Single Max Rope Diameter 16 mm (5/8") Safe Working Load (SWL) 550 kg (1212 lbs) Break Load 1100 kg (2425 lbs) Weight 362 g Dimensions 152 × 56 × 50 mm
Applications
- Temporary redirection of sheets and control lines
- Spinnaker and genoa sheet lead adjustment
- Quick rigging modifications on cruising and racing yachts
- Medium-load applications requiring fast installation
According to the Barton snatch block specification, this type of block allows placement anywhere on deck with instant rope insertion without reeving, making it highly effective for dynamic sailing conditions :contentReference[oaicite:0]{index=0}.
The Barton snatch blocks are engineered for speed, flexibility, and durability, providing reliable performance and efficient line handling in modern sailing systems.
-
